Build your own USB tuner- will work with Minitioune

Digital ATV - The latest generation, cutting edge ATV - Please discuss it all here.
Forum rules
This forum is run by the BATC (British Amateur Television Club), it is service made freely available to all interested parties, please do not abuse this privilege.

Thank you
Post Reply
G4KLB
Posts: 251
Joined: Wed May 28, 2008 10:46 am

Re: Build your own USB tuner- will work with Tutioune

Post by G4KLB » Thu Sep 03, 2015 2:03 pm

WOW This version is the best ever!!!!!!

Many thanks Jean-Pierre 8-)

Colin G4KLB
Top
G4KLB
Posts: 251
Joined: Wed May 28, 2008 10:46 am

Re: Build your own USB tuner- will work with Tutioune

Post by G4KLB » Thu Sep 03, 2015 2:21 pm

Auto detect tuner works very well, I only need one programme now :D
Top
User avatar
G1LPS Terry
Posts: 202
Joined: Mon Mar 10, 2008 10:33 pm

Re: Build your own USB tuner- will work with Tutioune

Post by G1LPS Terry » Thu Sep 03, 2015 8:46 pm

Tried it out tonight receiving Rob DTS on MPEG2 and H264 hd on 1280mhz Worked Excellent!!!!!! :D
It selected 16:9 automatically also if transmitted.
Great to see that it selects the FTxxx USB device now. This means I don't have to keep unplugging the SDR-IQ when using the USB tuner.

Super work on the software
A big "Thanks"
Top
G3UEQ
Posts: 93
Joined: Sun Jul 26, 2015 10:28 am

Re: Build your own USB tuner- will work with Tutioune

Post by G3UEQ » Thu Sep 03, 2015 9:23 pm

Jean-Pierre
Works very well, like Terry it is good that I also do not have to disconnect other device..

Well done!!
Andy G3UEQ
Top
G0ATW
Posts: 19
Joined: Sun Feb 24, 2008 11:10 pm

Re: Build your own USB tuner- will work with Tutioune

Post by G0ATW » Thu Nov 05, 2015 3:53 pm

Two thermal images of a working MiniTiouner

Top
G4EWJ
Posts: 1456
Joined: Wed Feb 17, 2010 10:11 am

Re: Build your own USB tuner- will work with Tutioune

Post by G4EWJ » Thu Nov 05, 2015 4:53 pm

Fascinating. The regulator bolts seem comparatively cool. Can you do the underside?

Brian
Top
G0ATW
Posts: 19
Joined: Sun Feb 24, 2008 11:10 pm

Re: Build your own USB tuner- will work with Tutioune

Post by G0ATW » Fri Nov 20, 2015 7:46 pm

Sorry for the delay Brian.
This is the underside of the board, note the screws washers and nuts all had heat sink compound applied.

Cheers.

John G0ATW
Attachments
Top
F6DZP
Posts: 217
Joined: Fri May 27, 2011 9:59 am

Re: Build your own USB tuner- will work with Tutioune

Post by F6DZP » Mon Nov 23, 2015 9:10 am

Hello,
a new version of Minitioune is available.
improvements:
- TS buffer size is adjustable. New value used now gives only 1/10th sec of latency.
- HamTV implementation is completely done. Minitioune can be used for receiving ISS DATV signal.
- all buttons can be preset to a value when Minitioune start

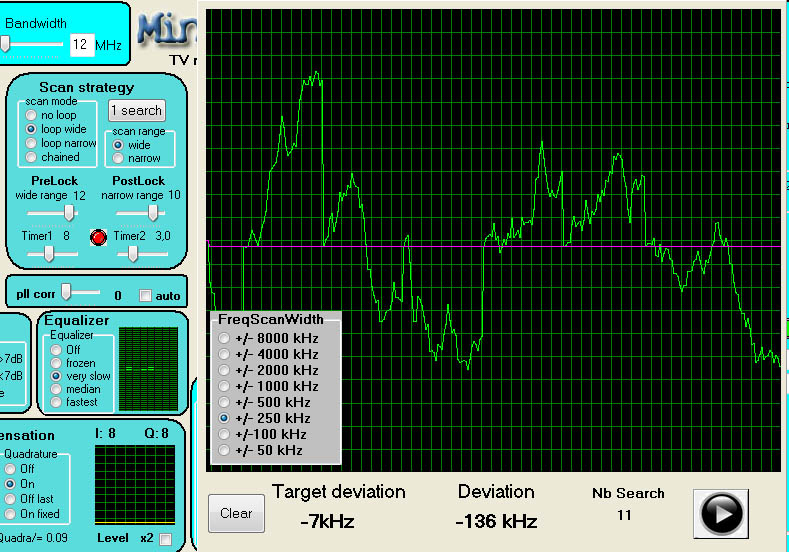

- Derotator scanning can be observed using a new window.
Gestion du scan_.jpg
Gestion du scan_.jpg (208.86 KiB) Viewed 9470 times
You can download this new version here:
http://www.vivadatv.org/viewtopic.php?f=60&t=441

73
Jean-Pierre F6DZP
Top
G4KLB
Posts: 251
Joined: Wed May 28, 2008 10:46 am

Re: Build your own USB tuner- will work with Minitioune

Post by G4KLB » Mon Nov 23, 2015 10:47 pm

Working well on Win10 :D
Top
G4KLB
Posts: 251
Joined: Wed May 28, 2008 10:46 am

Re: Build your own USB tuner- will work with Minitioune

Post by G4KLB » Mon Nov 23, 2015 11:03 pm

Everything seems to be working here.
Top
