3.4GHz DATV Output

Locator: IO94EQ
Location: 200m ASL, Kirk Merrington, County Durham

Inputs: 6 X Inputs available (any four available simultaneously in quad picture and sound)
1.280GHz - FM & Digital 4m/s
2.328GHz - FM - Omni Alford Slot
2.388GHz - FM - Omni Alford Slot
10.315GHz - FM & Digital 4m/s Omni Slotted Waveguide

Outputs:
2.440GHz - Omni Alfort Slot - FM -
10.065GHz - Omni Slotted Waveguide - FM
3.406GHz - Omni Digital DVB-S 4m/s

Watch Live at: http://www.batc.tv/ch_live.php
No Activity night as of yet... Activity is usually Mid Afternoon / Late Evenings

Web site: http://www.m0dts.co.uk/gb3km/index.html
User avatar
G1LPS Terry
Posts: 105
Joined: Mon Mar 10, 2008 10:33 pm

3.4GHz DATV Output

Post by G1LPS Terry » Sun Jan 06, 2013 12:26 pm

I have now made an application to add a 3406MHz Digital output to GB3KM.
Path plots show good coverage of the current user base.
It is hoped that those that can access the repeater now but can not see it due to Wifi etc. will be able to see it on 3.4ghz. Its planned to start some test transmissions from the site ASAP.

Regards
Terry G1LPS
Last edited by G1LPS Terry on Tue Feb 12, 2013 5:18 pm, edited 1 time in total.

User avatar
G1LPS Terry
Posts: 105
Joined: Mon Mar 10, 2008 10:33 pm

Re: 3.4GHz

Post by G1LPS Terry » Sun Jan 13, 2013 1:14 pm

The work on the 1u rack unit that will house the Digilite tx and 3.4ghz upconverter is under way.
Upconverter board mods underway.
20w PA has arived. Feeder is run from the mast to the rack
Digilite board, LO board are ordered. Everything else for digilite still needed

Anyone in the group who has unwanted spare components left over from their Digilite builds, please consider donating them to the build.
Funds are now running very low.

Wanted also a Haupage PVR -USB2 for a good price please keep your eyes open for one. (system will run from a netbook so must be the usb version)

Thanks
Terry G1LPS

User avatar
G1LPS Terry
Posts: 105
Joined: Mon Mar 10, 2008 10:33 pm

Re: 3.4GHz

Post by G1LPS Terry » Fri Jan 25, 2013 12:51 pm

Progressing

I now have a WinTv PVR USB2. on its way
Contoller board for Digilite has arrived.
Thank you Richard BYI for making us a special Hex file to display the 3.4GHz frequency correctly :D
Metal work is finished.

Next the controller board build

Terry G1LPS

User avatar
G1LPS Terry
Posts: 105
Joined: Mon Mar 10, 2008 10:33 pm

Re: 3.4GHz

Post by G1LPS Terry » Fri Feb 01, 2013 10:38 pm

The path between myself and Rob M0DTS on 3.4GHz DATV was checked tonight. Rob tx'ed about 200mw to a 18dbi patch antenna in my direction. I opened the attic window and poked a wave guide type C band lnb out (no horn just the bare LNB) it was still blocked by the roof in Rob's direction. Despite that Robs signal was instantly there at full quality and signal strength with a super picture. Wish they were all that easy hi. about 28km path. :D .
Thanks to the group for the components and donations towards the KM 3.4GHZ build.
Terry G1LPS

User avatar
G1LPS Terry
Posts: 105
Joined: Mon Mar 10, 2008 10:33 pm

Re: 3.4GHz build progress

Post by G1LPS Terry » Sun Feb 10, 2013 11:55 am

Heres the latest update on the 3.4ghz DATV build
Last night I completed the Digilite controller and the Digilite TX board assembly. (minus the IC on the underside ofthe board which hasnt arrived yet)
Next job is to finish off the 3.4ghz mixer board mods and get it off to Rob to tune the filter. ;)

Cheers
Terry G1LPS

User avatar
G1LPS Terry
Posts: 105
Joined: Mon Mar 10, 2008 10:33 pm

Re: Update

Post by G1LPS Terry » Wed Feb 13, 2013 7:39 pm

Folllowing on from Rob and Charles sucess in finding a solution for a stand alone digilite system and not having to use a PC anymore. The MK808 Dongle has been ordered.
This will be built into KM's 3.4ghz rack.

Terry G1LPS

User avatar
G1LPS Terry
Posts: 105
Joined: Mon Mar 10, 2008 10:33 pm

Re: 3.4GHz DATV Output

Post by G1LPS Terry » Mon Mar 25, 2013 11:39 pm

Update
Had a break from the build. Rob had kindly modded the upconverter board for me.
Everything is in the 1u rack and I'm on with the connecting up as time permits.
Digilite is still to test and setup.

Terry G1LPS

User avatar
G1LPS Terry
Posts: 105
Joined: Mon Mar 10, 2008 10:33 pm

Re: 3.4GHz DATV Output

Post by G1LPS Terry » Fri May 31, 2013 9:55 am

Had a break but been back at it.
The 3.4Ghz rack is now complete and ready for testing Hopefully this weekend.
Need Robs assistance in setting up the MK808.

Next goal is to complete an antenna next week in time to use the system myself in the Summer fun contest.
So hopefully a good chance for the KM group to test their RX systems. ;)

Terry G1LPS :D

User avatar
G1LPS Terry
Posts: 105
Joined: Mon Mar 10, 2008 10:33 pm

Re: 3.4GHz DATV Output

Post by G1LPS Terry » Sun Jun 02, 2013 7:58 pm

:D
The 3.4Ghz rack is now operational.
Thanks to Rob today for some fault finding and programming the MK808
A nice DVB-S picture was radiated across the shack.

Work on an antenna will be done this week
Regards
Terry G1LPS

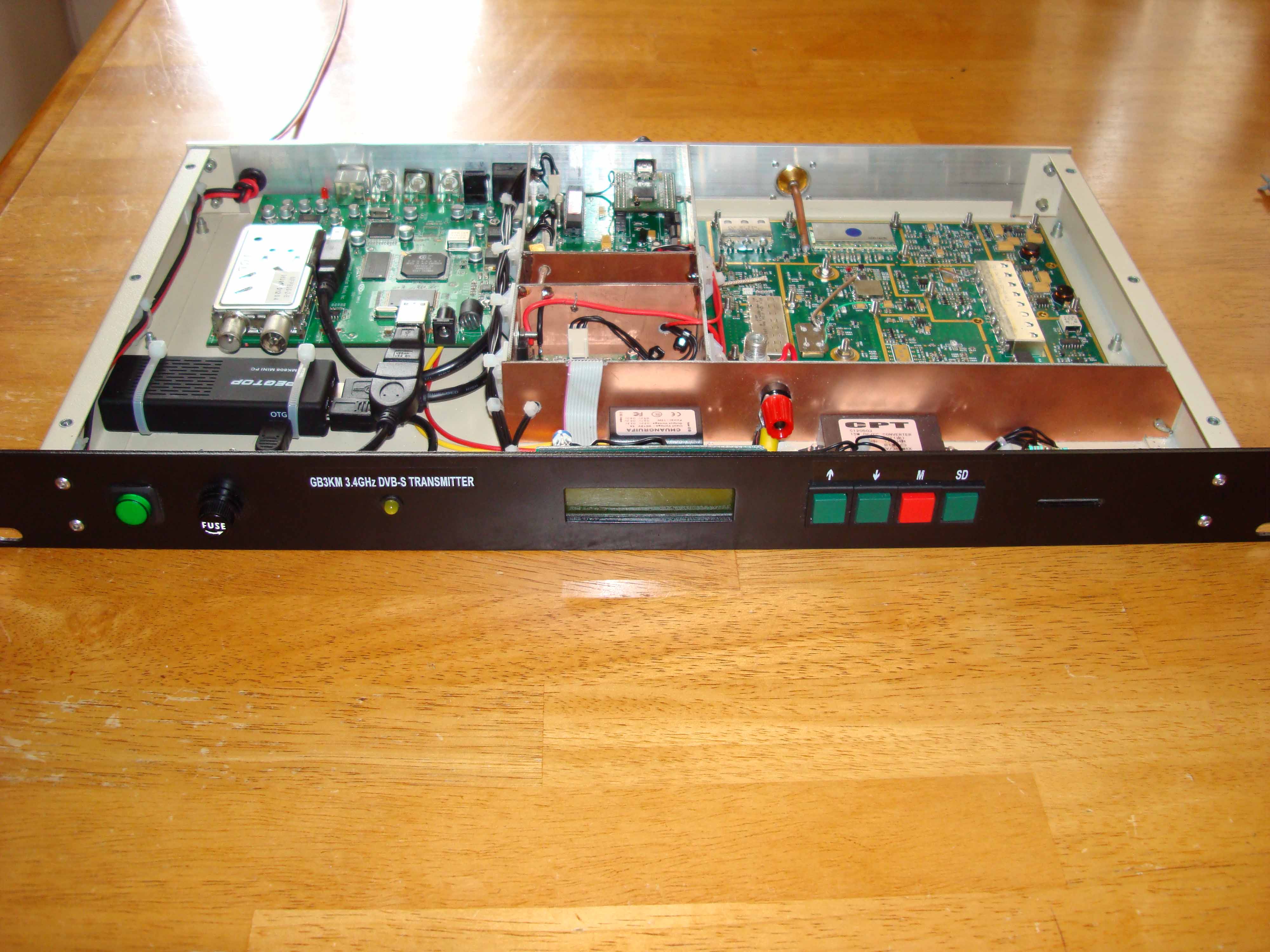

GB3KM 3.4GHz stand alone digilite TX
Front panel view

EddieG0EHV
Posts: 40
Joined: Sat Apr 12, 2008 5:34 pm

Re: 3.4GHz DATV Output

Post by EddieG0EHV » Fri Jun 07, 2013 4:54 pm

Looks nice!
Catch you on the contest tomorrow.
Regards,
EDDIE
