GB3CT on air
Posted: Wed May 12, 2021 7:27 pm
by g7kpm
GB3CT is now transmitting on 3404Mhz DVB-S2 1M/s from IO93UM, Caistor Top, Lincolnshire Wolds.
No receivers are currently active, beacon mode only.
Any coverage reports would be appreciated.
73s, Jason G7KPM
Re: GB3CT on air
Posted: Thu May 13, 2021 9:51 am
by M0DTS
Couple of screenshots of paths i tested yesterday.

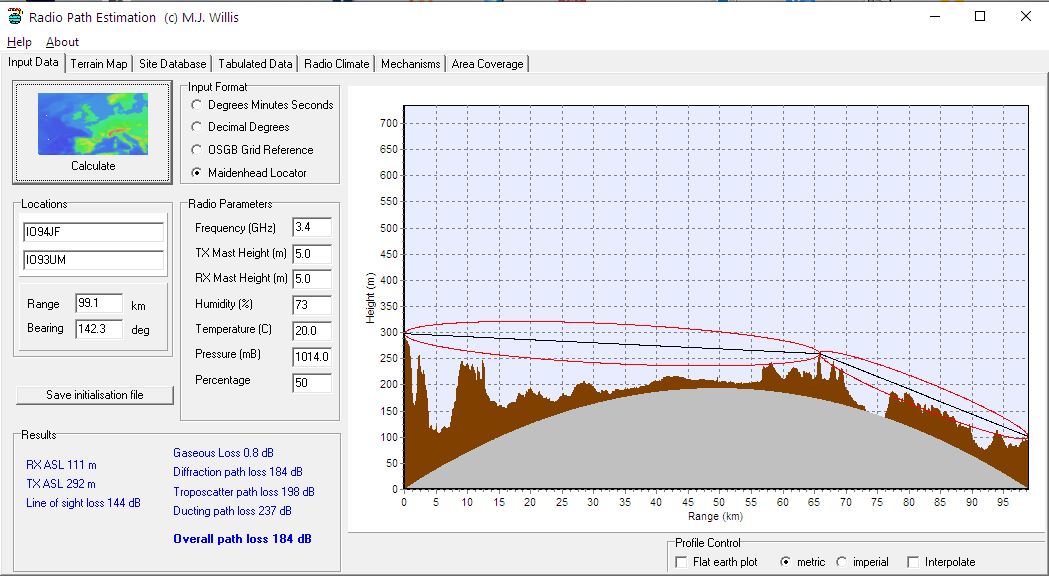

IO94JF Sutton Bank was fine with a little qsb, up to D4.
- path IO94JF.JPG (121.91 KiB) Viewed 3857 times

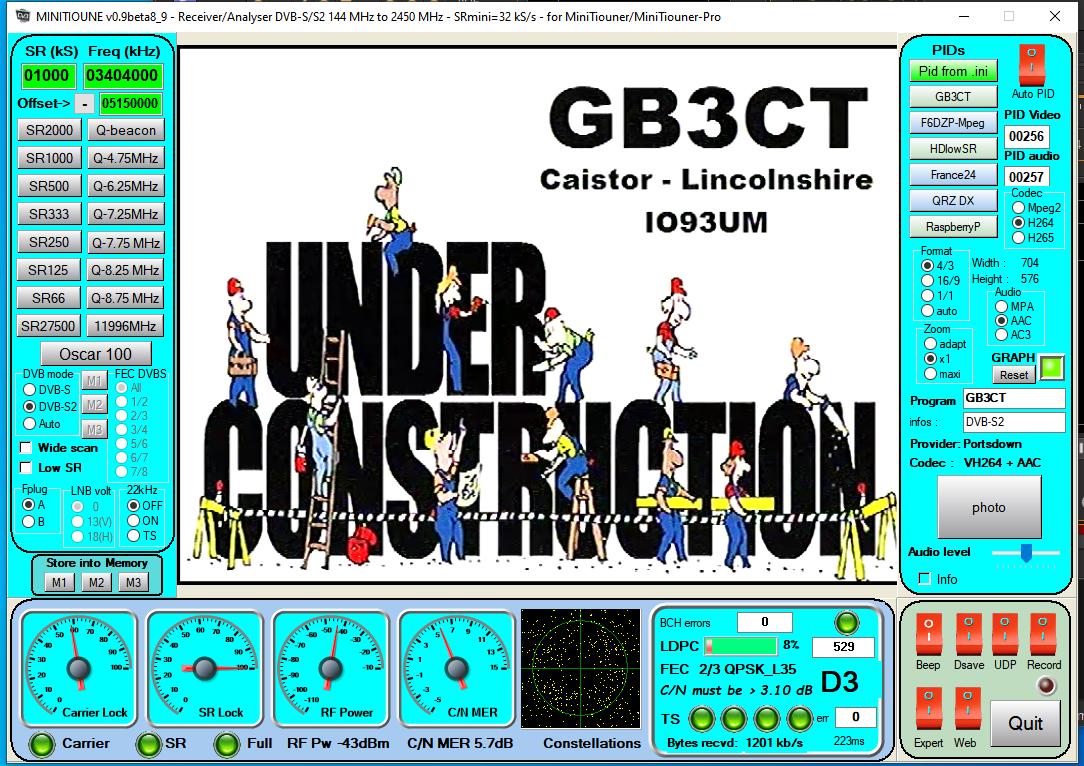

- gb3ct.jpg (205.87 KiB) Viewed 3857 times

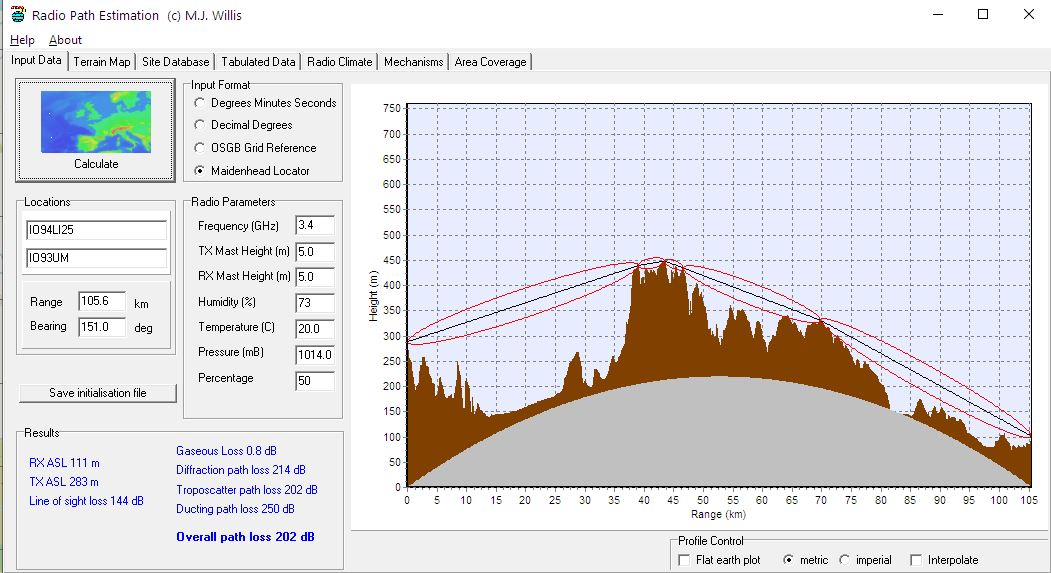

IO94LI Cockayne Ridge was about 2dB over the noise so a little weak to decode, another 2-3dB may just have done it.
Interesting that the path plot suggests it should be nearly 20dB worse there.
- path IO94LI.JPG (128.82 KiB) Viewed 3857 times
Re: GB3CT on air
Posted: Thu May 13, 2021 12:09 pm
by m1cdq
Rob out of curiosity what is your rx set up
Re: GB3CT on air
Posted: Thu May 13, 2021 2:09 pm
by M0DTS
It's an 80cm Dish with a C-band LNB (C1W-PLL type) at the feed point.
Unfortunately those LNB's are not as easy to come by, the non PLL ones are easier to get and do also work for 1Ms signals but you have to be careful of any LO offset.
Rob
Re: GB3CT on air
Posted: Thu May 13, 2021 2:15 pm
by M0DTS
Now i've looked at the photo i took of the dish pointing to CT i think i may have been on a vertical lobe as the dish looks to be pointing very low!!
This will explain whey there was not as much signal difference between the two sites as predicted.
I'll confirm this next time i'm at the site.
Rob
Re: GB3CT on air
Posted: Fri May 14, 2021 9:59 pm
by g7kpm
Thankyou for the report Rob, it's good to see that the repeater is getting out OK.
Much appreciated.
73s Jason G7KPM
