3.4GHz transverter.

Post by G4EWJ » Fri Jun 30, 2017 1:32 pm

My 3.4GHz transverter is a bit simpler than the 10GHz one.

Brian


Morion MV89A double oven 10MHz OCXO - mainly for narrowband, as the ADF4351 on-board reference was 70kHz adrift
ADF4351 on 2968MHz with an Arduino Nano controller
Unmodified MMIC section of a 70cm DigiThin to increase the LO to +13dBm
ADE42MH mixer
Solderless pipe cap filter
Stealth Microwave 20W amp, 50dB gain

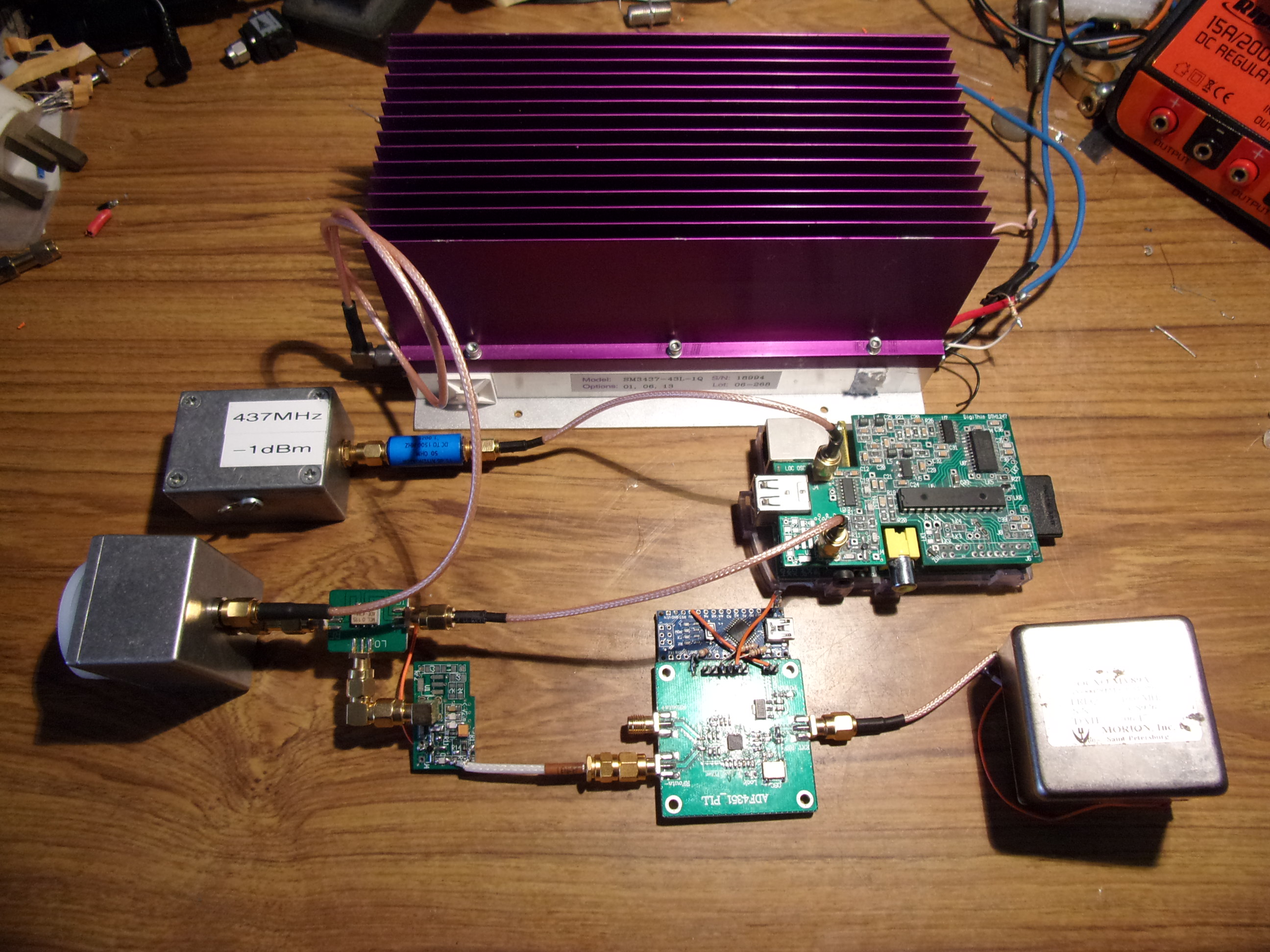

9cm transverter1.jpg
9cm transverter1.jpg (830.71 KiB) Viewed 2968 times
