Re: Motorola MHW2723

Post by g8cpf » Sun Mar 17, 2013 9:31 am

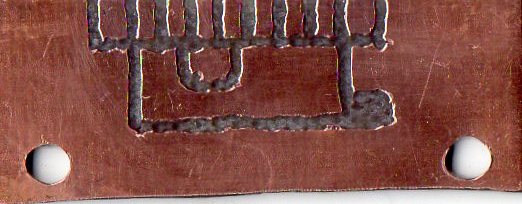

And the basic board.......(needs a steadier hand HI!)
Attachments
MHW2723 board.jpg
MHW2723 board.jpg (39.84 KiB) Viewed 5233 times

G4EWJ
Posts: 711
Joined: Wed Feb 17, 2010 10:11 am

Re: Motorola MHW2723

Post by G4EWJ » Wed Mar 20, 2013 12:52 pm

Thanks.

I think the crinkly edges confuse the rf. It's not sure whether it can make it to the other side. :)

Brian

g8cpf
Posts: 23
Joined: Thu Feb 28, 2013 8:09 pm

Re: Motorola MHW2723

Post by g8cpf » Thu Mar 21, 2013 10:25 am

It's deliberate of course.....a sort of "scattering filter" to stop all those microwave harmonics propogating along the board..... ;)

User avatar
g8cjs
Posts: 121
Joined: Mon Aug 10, 2009 12:23 pm

Re: Motorola MHW2723

Post by g8cjs » Thu Mar 21, 2013 6:21 pm

I now have the PCB's available via the online shop
can anyone point me at some artwork or the coplete article
Trevor

g8gtz
Posts: 1153
Joined: Wed Apr 07, 2010 6:26 pm

Re: Motorola MHW2723

Post by g8gtz » Thu Mar 21, 2013 7:39 pm


G8XZD-TV
Posts: 94
Joined: Fri Feb 22, 2013 6:41 pm

Re: Motorola MHW2723

Post by G8XZD-TV » Sun Mar 24, 2013 10:12 pm

g8cjs wrote:I now have the PCB's available via the online shop
can anyone point me at some artwork or the coplete article
Trevor
Many thanks. Ordered x2. 73 Ian

User avatar
g8cjs
Posts: 121
Joined: Mon Aug 10, 2009 12:23 pm

Re: Motorola MHW2723

Post by g8cjs » Tue Mar 26, 2013 6:19 pm

PCB's now in stock for the MHW2723 in the On-Line shop

G0KTD
Posts: 45
Joined: Wed Jun 08, 2011 7:39 am

Re: Motorola MHW2723

Post by G0KTD » Wed Mar 27, 2013 9:20 am

PDF for MHW2723 From this site http://rfplus.co.uk/data/mhw2723.pdf

G4KLB
Posts: 207
Joined: Wed May 28, 2008 10:46 am

Re: Motorola MHW2723

Post by G4KLB » Sun Apr 21, 2013 12:56 am

Anyone found a 5V Reg with the pin outs that match the PCB, the LD1117S50CTR mentioned in the article has the output in the middle as most of the SOT223 types tend to.

G0MXW
Posts: 20
Joined: Thu Sep 29, 2011 4:59 pm

Re: Motorola MHW2723

Post by G0MXW » Fri May 17, 2013 3:30 pm

Diodes Inc. - ZSR500G has correct pinout. Farnell part No. 1132785. Got some spares if anyone wants one.

Dave
G0MXW
