Picotuner v3 panel 3d model
Does somebody know where can I find a Picotuner V3 panel 3d model (stl file) ?
Re: Picotuner v3 panel 3d model

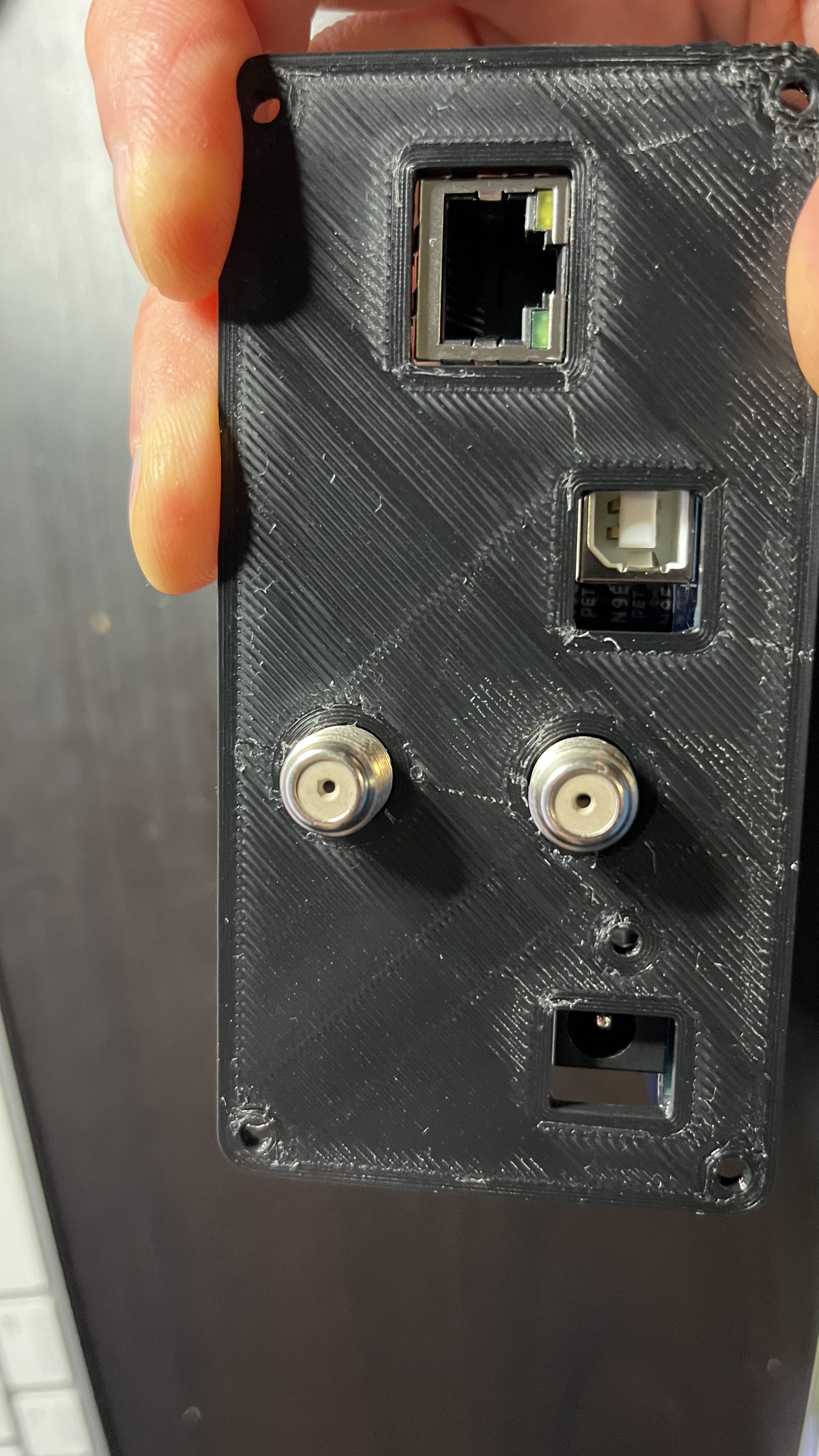

I believe that file is not for the latest version of PicoTuner. The Power and USB ports are not aligned with the panel.
- Attachments
-
- IMG_8857.jpeg (1.89 MiB) Viewed 1042 times
Re: Picotuner v3 panel 3d model
Could be the older version. I will have a look.
Re: Picotuner v3 panel 3d model
Is this the right size?
Test.pdf- (209.71 KiB) Downloaded 46 times
Re: Picotuner v3 panel 3d model
OK - So the one on the Wiki is the correct one. I thought it had to be. What you have done is print the version 1 panel and not the version 3 panel. Scroll down.
https://wiki.batc.org.uk/File:PicoBackPanelSTL.zip
Mike
https://wiki.batc.org.uk/File:PicoBackPanelSTL.zip
Mike
Re: Picotuner v3 panel 3d model
Many thanks Mike. It looks ok now.
Re: Picotuner v3 panel 3d model
Hi Mike, is there a model for the front panel ?
Re: Picotuner v3 panel 3d model
No - I figured people can drill 4 holes by themselves.
