Build your own USB tuner- will work with Minitioune

Post by F6DZP » Tue Mar 31, 2015 2:46 pm

Hello,

As its not sure we always be able to get the tuner we need, as there are difficult to find when they don't completely disappear from the market,
I have decided two weeks ago to build my own.
We have many solution for finding good Nim Tuner.
The USB chips used with almost USB tuner of the market is the CY7C86013A.

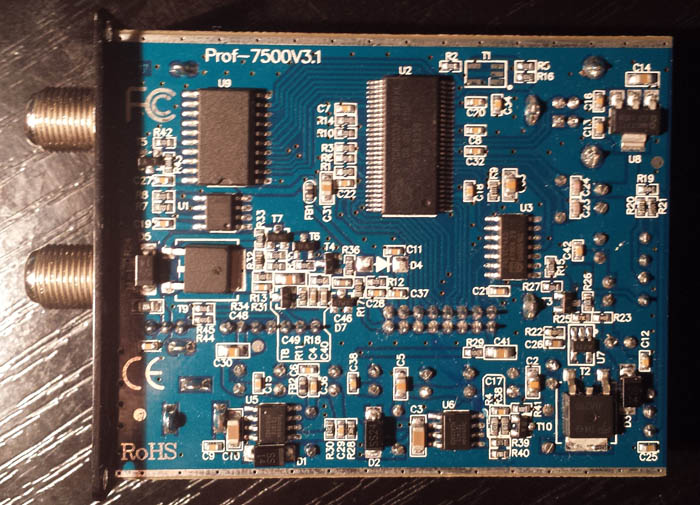

(Prof7500 = NIM EARDA + CY7C86013A, STB5980 = NIM EARD + CY7C86013A ......)
( on the other side there is only the Nim Tuner and capacitors)
We can see on this side, that there are only component for power supplying the Nim tuner + power supply for LNB and CYC786013A for usb interface.
I have began three weeks ago to study this chip, but it is a very powerful chip that takes time to develop for the first time with it.
So I have chosen to test also a second solution less powerful but less "eating time" : use the FT2232H we already use with Digilite.

I use the D2XX driver, one channel for I2C and one channel for TS transfer.

Yesterday I have finished to develop CheckTutiouneUSB that works very well with this "homebrewed USB tuner":
Check USB tuner.jpg
Check USB tuner.jpg (195.74 KiB) Viewed 6810 times

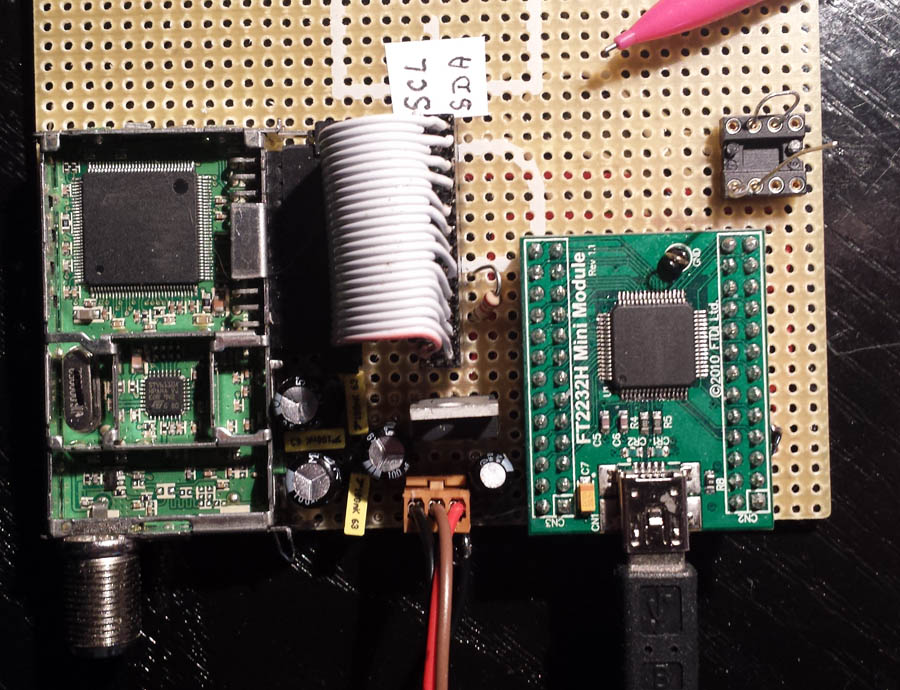

here is the tuner:
As you can see, there is not too much component:

-The Nim Tuner
-The FT2232H Usb mini module
-Just a flat cable between both

Nothing else if we already have power supply.
Here I have added a 3.3v regulator
1V is yet external, but will be soon made on this board.

I hope Tutioune will be able to use this USB tuner very soon.
I have finished the I2C implementation to have the Nim working.
I have now to develop the part for getting the TS. (as you can see on the first photo, DMA transfer or FIFO transfer is not yet implemented)

So this could be a solution easy to use, there are thousand of NIM tuner on the market that are waiting us.

73
Jean Pierre F6DZP
Last edited by F6DZP on Mon Nov 23, 2015 9:14 am, edited 2 times in total.

g8gtz
Posts: 809
Joined: Wed Apr 07, 2010 6:26 pm

Re: Build your own USB tuner- will work with Tutioune

Post by g8gtz » Tue Mar 31, 2015 3:57 pm

Excellent news Jean Pierre - this means we will be able run Tutioune on a laptop out portable :-)

BATC shop is out of stock of the FT233mini USB as sales of Digilite parts have stopped but we would be willing to buy some in if people are interested.

Mouser UK have them in stock but with delivery one unit costs £29.60 (+VAT?). However if we were to buy 10 for the shop we could sell them at around £20 incld delivery from BATC - so are people interested? (This is actually less than the original part was bought for when we were doing Digilites!)

Re the tuners - we would also be willing to stock the tuner (with same chipset as S1600 card) if there is interest.

Looking for feedback...

73

Noel - G8GTZ

g8vpg
Posts: 160
Joined: Fri Oct 11, 2013 9:35 am
Location: Bristol

Re: Build your own USB tuner- will work with Tutioune

Post by g8vpg » Tue Mar 31, 2015 4:12 pm

Yes Noel,

I would definitely order the necessary components from the BATC.

Shaun G8VPG.

G8XZD-TV
Posts: 75
Joined: Fri Feb 22, 2013 6:41 pm

Re: Build your own USB tuner- will work with Tutioune

Post by G8XZD-TV » Tue Mar 31, 2015 4:24 pm

I have the usb module but would definitely buy a tuner module. Ian.

F6DZP
Posts: 153
Joined: Fri May 27, 2011 9:59 am
Location: Poitiers - France
Contact:

Re: Build your own USB tuner- will work with Tutioune

Post by F6DZP » Tue Mar 31, 2015 4:59 pm

Yes, when it will be finished and tested, if someone could draw the little pcb and the BATC have Pcb + FT2232H and Nim in stock, we will have a new interesting kit.
A DVB-S tuner that allow very low SR RX and measurement.

Jean-Pierre F6DZP

G4GUO
Posts: 485
Joined: Tue Feb 16, 2010 12:51 pm
Location: Worthing

Re: Build your own USB tuner- will work with Tutioune

Post by G4GUO » Tue Mar 31, 2015 5:02 pm

Good work Jean-Pierre,

I also am playing about with the same tuner that Evariste is using.
However I am using the Cypress USB2 chip.


- Charles G4GUO
Last edited by G4GUO on Wed Apr 01, 2015 6:21 am, edited 3 times in total.

reel2reel
Posts: 12
Joined: Sun Oct 05, 2014 8:07 pm

Re: Build your own USB tuner- will work with Tutioune

Post by reel2reel » Tue Mar 31, 2015 7:12 pm

I will take one tuner and the USB interface if and when available with thanks.
73
Andy G3UEQ

F6DZP
Posts: 153
Joined: Fri May 27, 2011 9:59 am
Location: Poitiers - France
Contact:

Re: Build your own USB tuner- will work with Tutioune

Post by F6DZP » Tue Mar 31, 2015 7:27 pm

Hi Charles,

Yes I have a similar setup with NIM + Cypress Chinese card.
So I started with both solution, one NIM + Cypress and one NIm + FT2232H
But after 2 days I was stuck on some Cypress/Chinese card behavior so found I could develop faster with FT2232H.

Jean Pierre F6DZP

G4GUO
Posts: 485
Joined: Tue Feb 16, 2010 12:51 pm
Location: Worthing

Re: Build your own USB tuner- will work with Tutioune

Post by G4GUO » Tue Mar 31, 2015 8:06 pm

Hi Jean Pierre,
I use the Cypress chip on Express so I am fairly familiar with it.
Getting the STB0899 to do anything is another matter though :x .

- Charles

G4EWJ
Posts: 589
Joined: Wed Feb 17, 2010 10:11 am
Location: Wirral

Re: Build your own USB tuner- will work with Tutioune

Post by G4EWJ » Tue Mar 31, 2015 11:47 pm

Great news. I can help to lay out the pcb and etch some prototypes.

Brian
