Ryde receiver pictures?

Posted: Tue Sep 15, 2020 8:00 am
by g8gtz
Hi

I'm just finalising the Ryde CQ-TV article and need a few pictures - showing how simple / compact / tidy the Ryde is.

Do you have anything? Posting back means I have permission to use in CQ-TV.

And I can add in any anecdotes / comments you want to make about the project.

73
Noel

Re: Ryde receiver pictures?

Posted: Tue Sep 15, 2020 8:03 am
by g0mjw

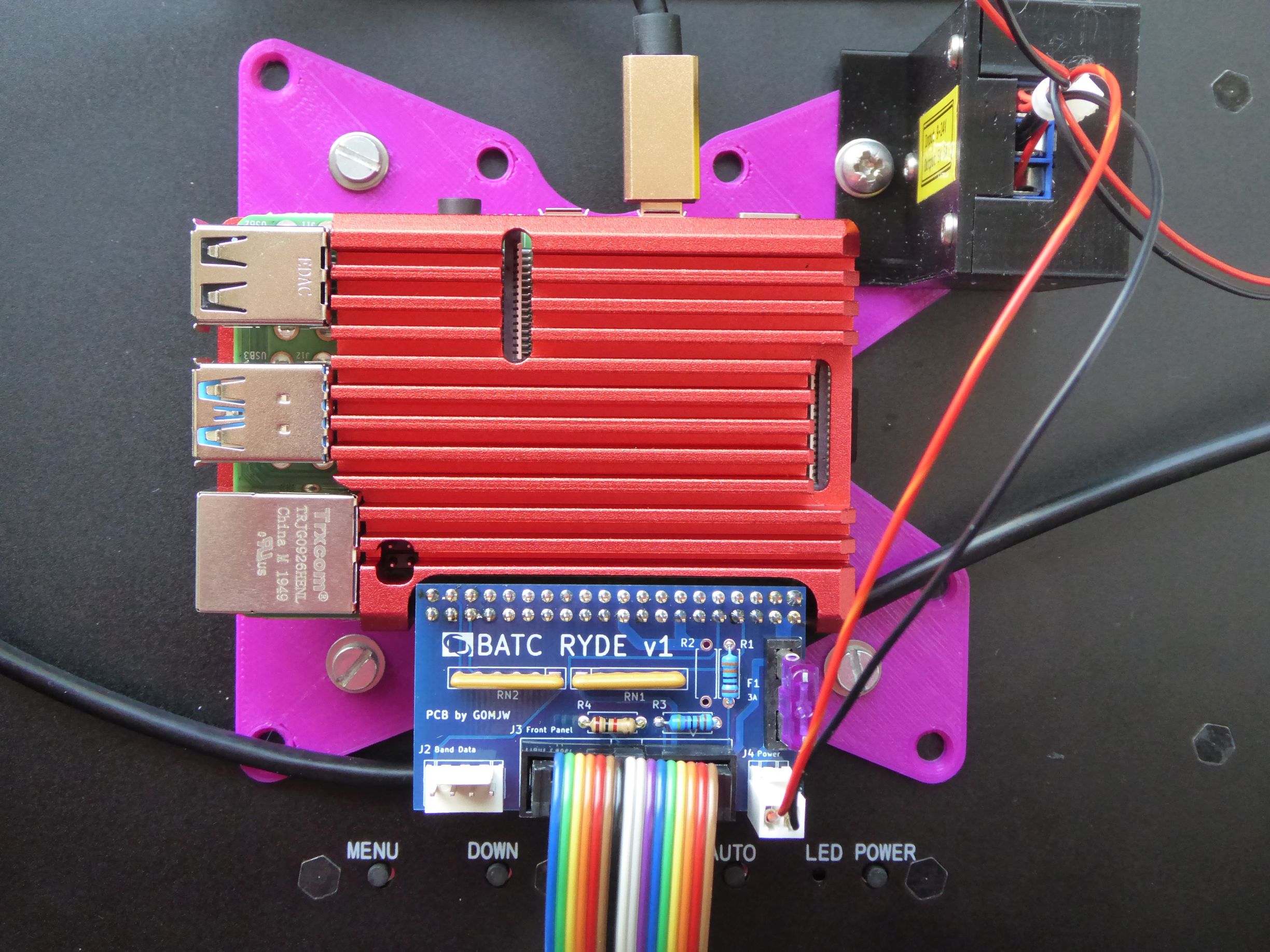

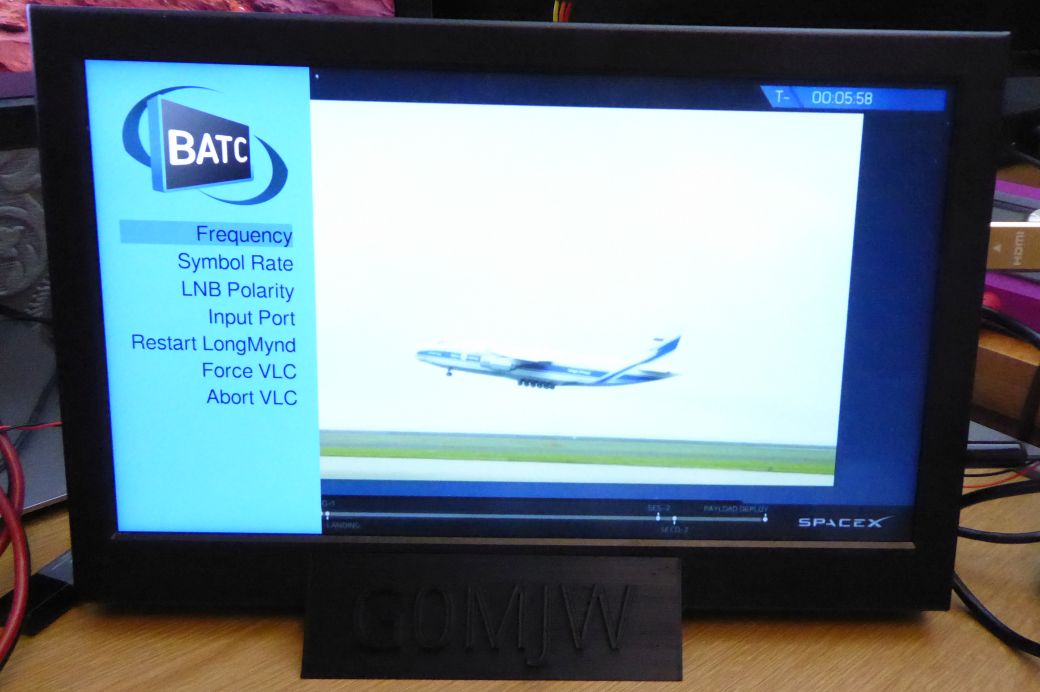

I could take some pictures of the one I made if you like. Here is one I took earlier

Re: Ryde receiver pictures?

Posted: Tue Sep 15, 2020 10:28 am
by MW0RUD

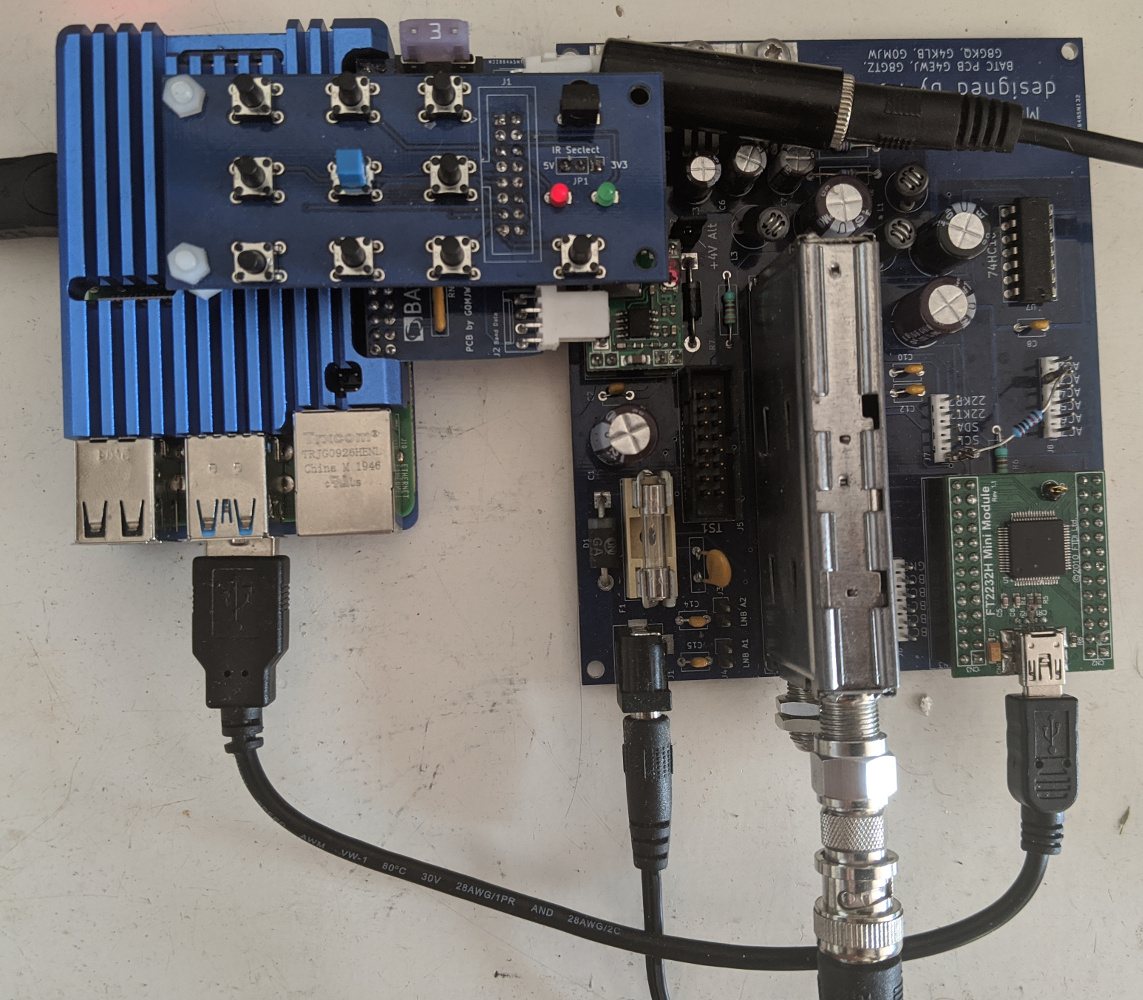

This is my development setup if that is of interest:

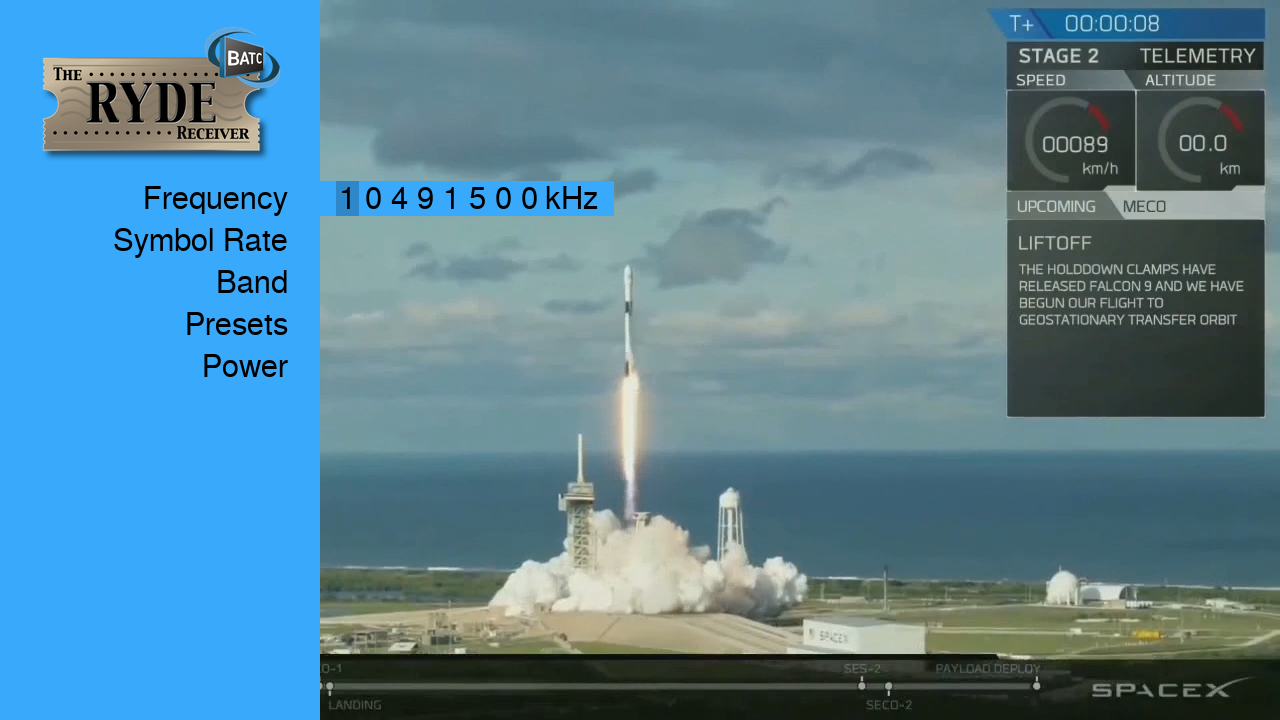

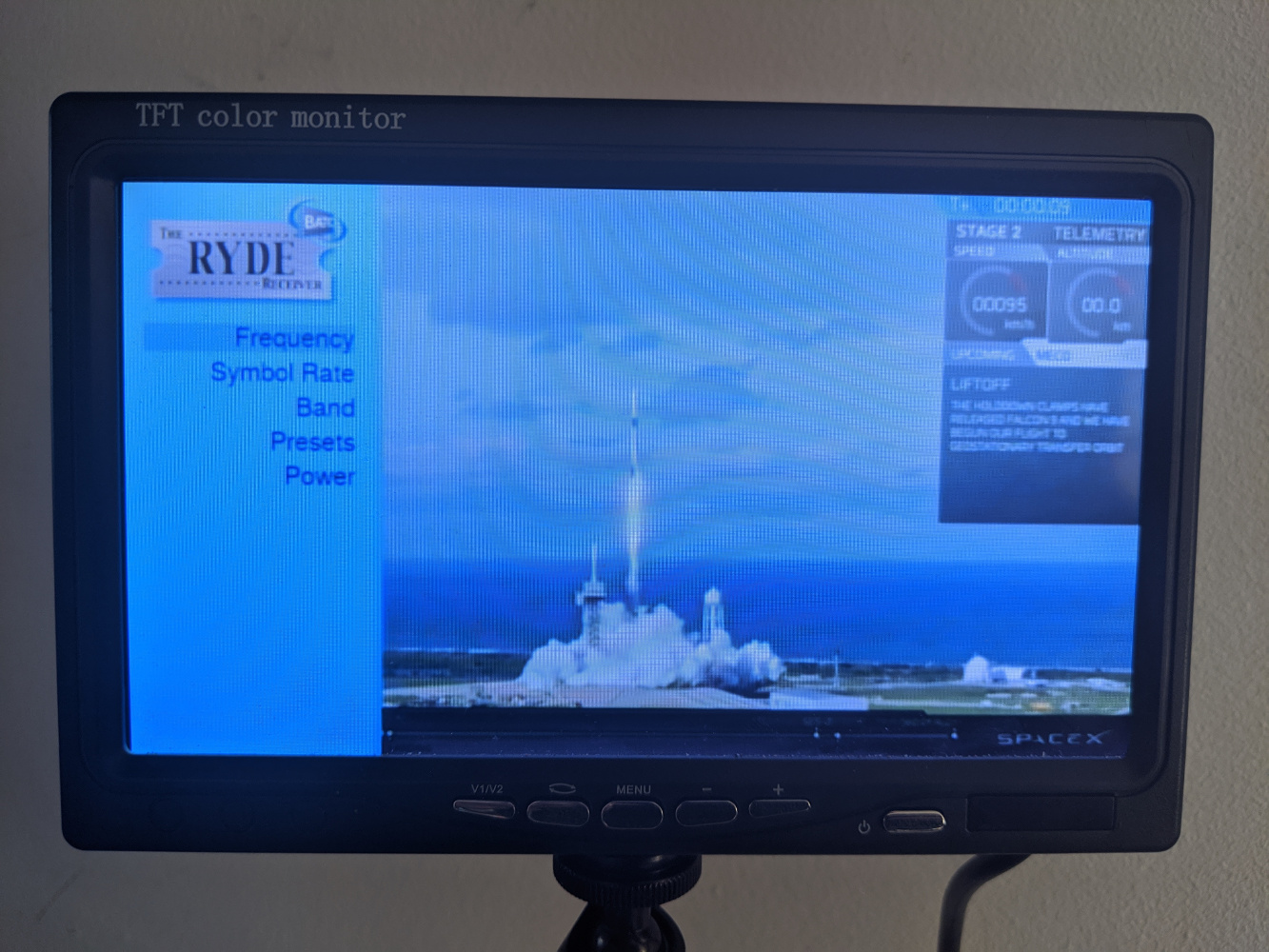

And some screenshots running a more recent version of the software

Re: Ryde receiver pictures?

Posted: Wed Sep 16, 2020 5:51 am
by G4KLB

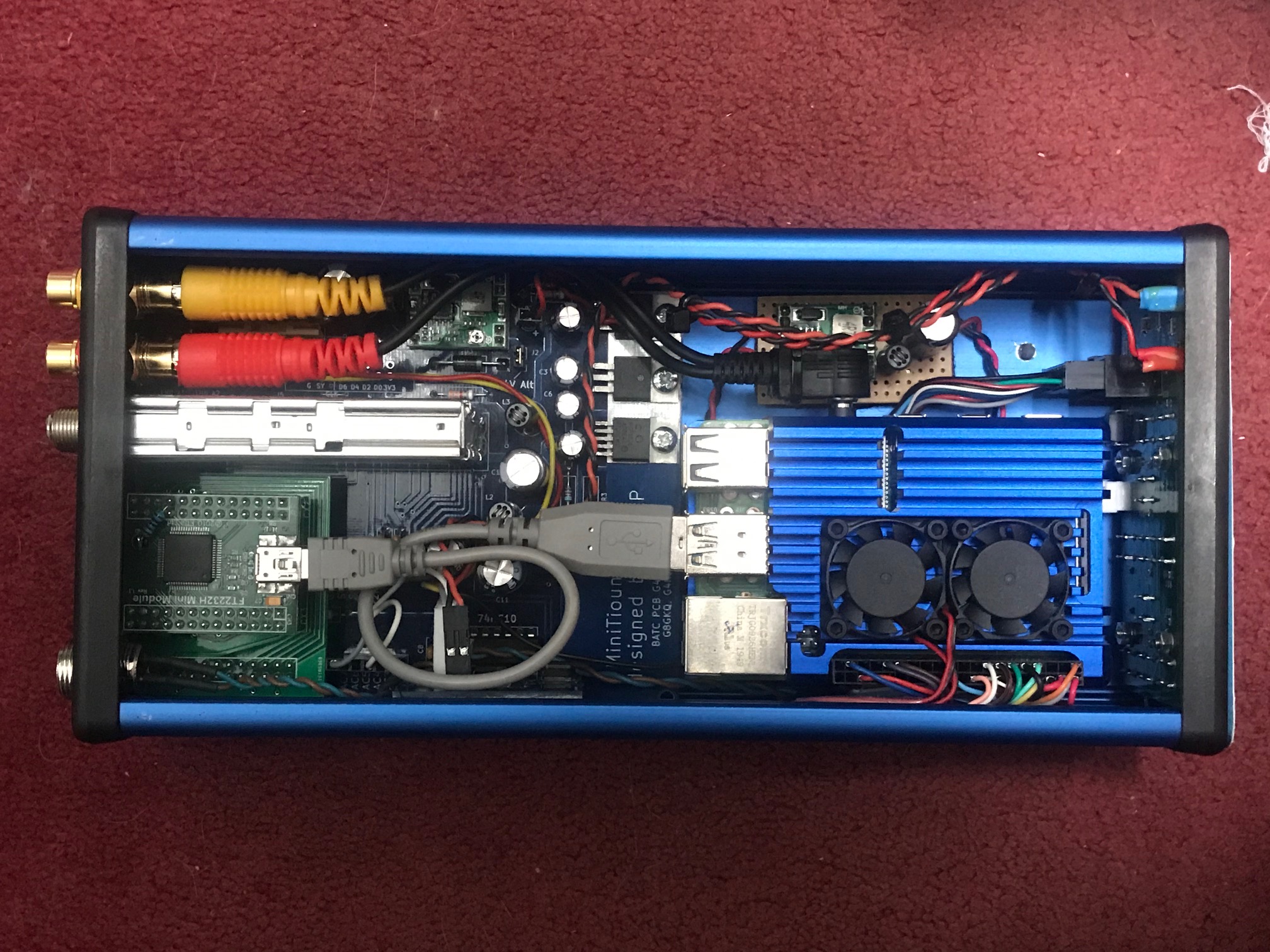

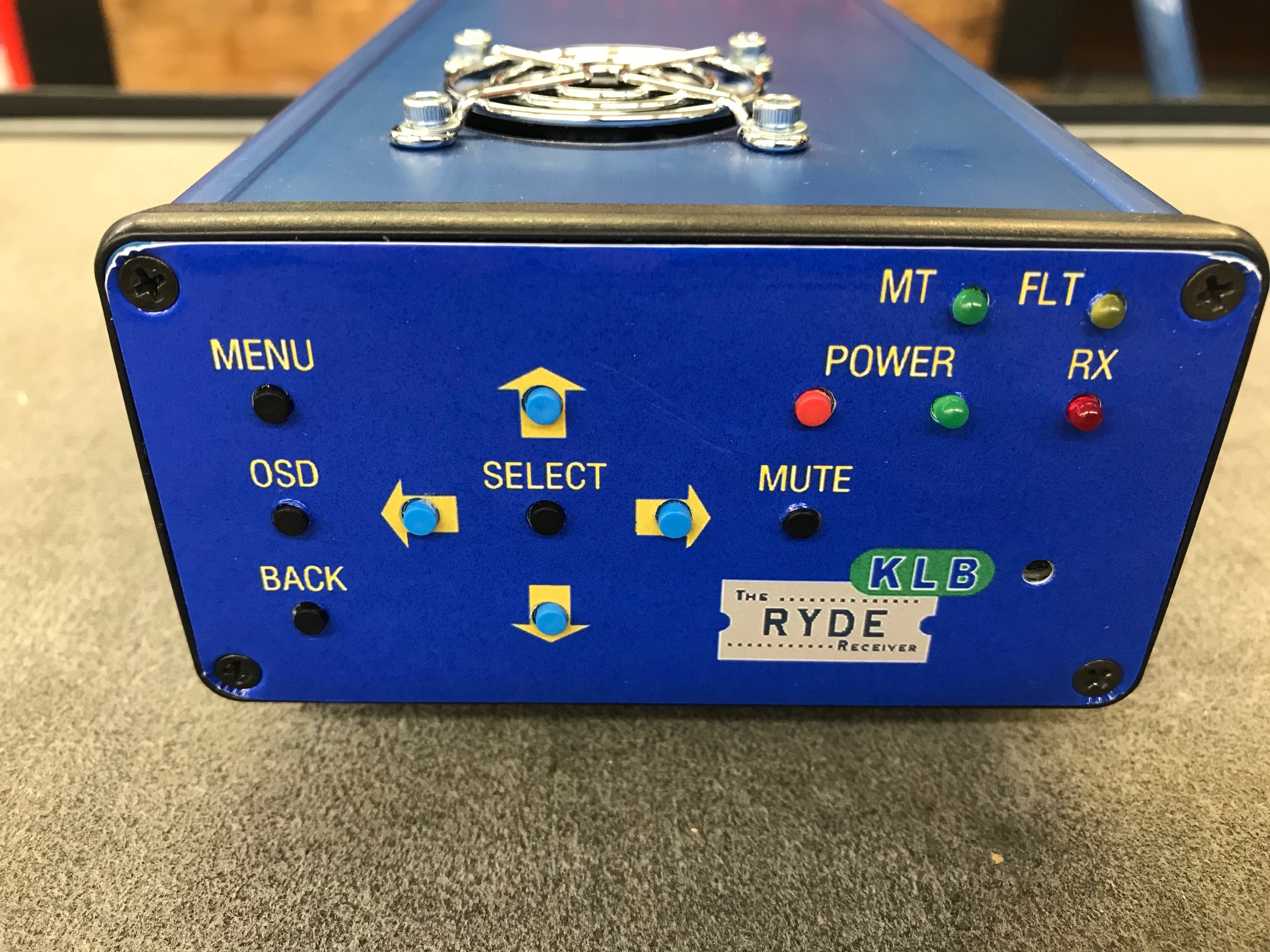

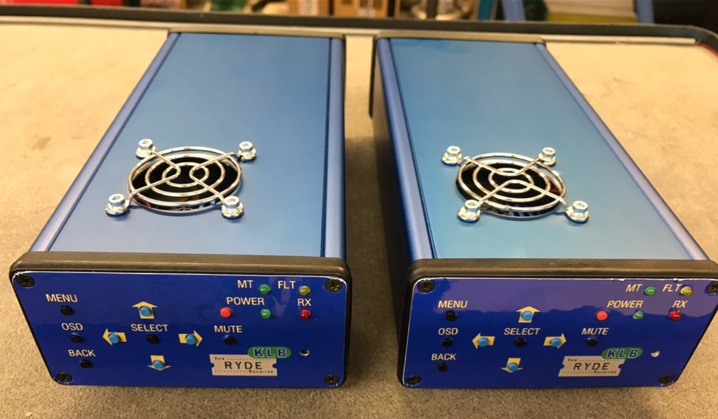

Done a couple of Ryde receivers for GB3SQ.

Not necessarily recommending the layout for general use as I have custom PCBs for the front panel and FT2232H module, together with overcurrent protection for the LNB output and an opto isolator for the lock output.
