IR Remote Controls for the Ryde Receiver

Post by G8GKQ » Wed Jul 15, 2020 5:13 pm

The BATC wiki contains details of the Infrared remote controls supported by the Ryde https://wiki.batc.org.uk/Ryde_remote_controls

It also contains details on how to add your own custom remote control - if you build a handset.yaml file for a new remote control for the Ryde Receiver, please post details here. If you can include a photo of the remote as well, that could help other users.

As an example, here is the file for the Nebula Remote that I use.

Code: Select all

---
name: NEBULA USB DTV
driver: rc-5
buttons:
    POWER:  0x0d
    UP:     0x16
    DOWN:   0x17
    LEFT:   0x18
    RIGHT:  0x19
    SELECT: 0x1a
    BACK:   0x14
    MENU:   0x15
    ZERO:   0x00
    ONE:    0x01
    TWO:    0x02
    THREE:  0x03
    FOUR:   0x04
    FIVE:   0x05
    SIX:    0x06
    SEVEN:  0x07
    EIGHT:  0x08
    NINE:   0x09
    MUTE:   0x26
    VOLUP:  0x1d
    VOLDN:  0x1e
    CHUP:   0x1b
    CHDN:   0x1c
Dave, G8GKQ

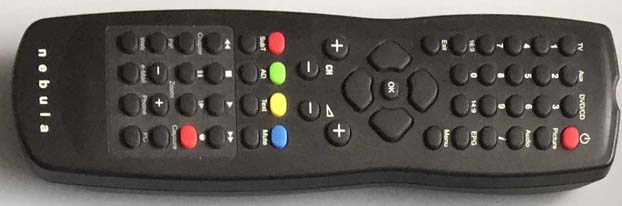

Attachments

g0mjw
Posts: 1247
Joined: Sat Sep 20, 2014 9:15 am

Re: IR Remote Controls for the Ryde Receiver

Post by g0mjw » Wed Jul 15, 2020 5:19 pm

Octagon SF8008
driver: nec
buttons:

POWER: 0x514
UP: 0x503
DOWN: 0x502
LEFT: 0x50e
RIGHT: 0x51a
SELECT: 0x507
BACK: 0x513
MENU: 0x500
ZERO: 0x512
ONE: 0x509
TWO: 0x51d
THREE: 0x51f
FOUR: 0x50d
FIVE: 0x519
SIX: 0x51b
SEVEN: 0x511
EIGHT: 0x515
NINE: 0x517

G8GKQ
Site Admin
Posts: 1746
Joined: Sun Mar 22, 2009 1:21 pm

Re: IR Remote Controls for the Ryde Receiver

Post by G8GKQ » Wed Jul 15, 2020 7:38 pm

Thanks Mike - I've added that to the latest build.

Dave

CU2ED
Posts: 14
Joined: Thu Jan 17, 2019 11:30 am

Re: IR Remote Controls for the Ryde Receiver

Post by CU2ED » Wed Jul 15, 2020 8:51 pm

Hello,
I use this one, as I have a few of them from my old PVR and MVP's, it works very well ...

name: Hauppauge PVR2 250 or MediaMVP
driver: RC5
buttons:
POWER: 0x1f3d
UP: 0x1f20
DOWN: 0x1f21
LEFT: 0x1f11
RIGHT: 0x1f10
SELECT: 0x1f25
BACK: 0x1f1f
MENU: 0x1f0d
ZERO: 0x1f00
ONE: 0x1f01
TWO: 0x1f02
THREE: 0x1f03
FOUR: 0x1f04
FIVE: 0x1f05
SIX: 0x1f06
SEVEN: 0x1f07
EIGHT: 0x1f08
NINE: 0x1f09

Thank you all for this great project!

73

Jacinto
cu2ed
Attachments

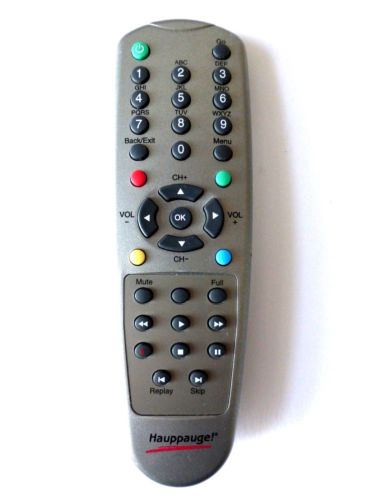

s-l500 (5).jpg
s-l500 (5).jpg (16.93 KiB) Viewed 789 times

G8GKQ
Site Admin
Posts: 1746
Joined: Sun Mar 22, 2009 1:21 pm

Re: IR Remote Controls for the Ryde Receiver

Post by G8GKQ » Wed Jul 15, 2020 9:19 pm

Thanks Jacinto

That one is now in the main build as well.

Dave

g8vpg
Posts: 343
Joined: Fri Oct 11, 2013 9:35 am

Re: IR Remote Controls for the Ryde Receiver

Post by g8vpg » Tue Jul 28, 2020 8:30 am

name: Freesat V7 Combo
driver: nec
buttons:

POWER: 0x311
UP: 0x347
DOWN: 0x34b
LEFT: 0x357
RIGHT: 0x353
SELECT: 0x304 (OK)
BACK: 0x352 (Exit)
MENU: 0x343
VOL+: 0x308 (Page+)
VOL-: 0x35e (Page-)
CHAN+: 0x342 (Sub-T)
CHAN-: 0x34f (Text)
ZERO: 0x31e
ONE: 0x31d
TWO: 0x31c
THREE: 0x346
FOUR: 0x315
FIVE: 0x314
SIX: 0x345
SEVEN: 0x300
EIGHT: 0x31f
NINE: 0x31b
MUTE: 0x310

Please note that the up/down left/right buttons are also labelled as vol+/- and chan+/-, so I have assigned separate buttons as shown in brackets to separate these functions.

73 Shaun.
Last edited by g8vpg on Fri Jul 31, 2020 5:58 pm, edited 1 time in total.

Audio Tone
Posts: 5
Joined: Tue Feb 26, 2019 1:58 pm

Re: Longmynd software

Post by Audio Tone » Tue Jul 28, 2020 9:39 am

Hi Dave .... This is coding for my LG BluRay. Model No. BP530R 2013 vintage. Just four differences MENU (vital) DOWN,CH+,CH-
All working well. Will send picture later.
Would suggest start up with 18 volt LNB polarity selected as default. 73 Tony G0AZQ.

name: LG BluRay
driver: nec
buttons:
POWER: 0x2d2d30
UP: 0x2d2d47
DOWN: 0x2d2d48
LEFT: 0x2d2d59
RIGHT: 0x2d2d5a
SELECT: 0x2d2d58
BACK: 0x2d2d45
MENU: 0x2d2d3a
MUTE: 0x409
VOL+: 0x402
VOL-: 0x403
CHAN+: 0x2d2d33
CHAN-: 0x2d2d32
ZERO: 0x2d2d44
ONE: 0x2d2d3b
TWO: 0x2d2d3c
THREE: 0x2d2d3d
FOUR: 0x2d2d3e
FIVE: 0x2d2d3f
SIX: 0x2d2d40
SEVEN: 0x2d2d41
EIGHT: 0x2d2d42
NINE: 0x2d2d43

KA5BBC
Posts: 71
Joined: Thu Jun 28, 2018 6:59 pm

Re: IR Remote Controls for the Ryde Receiver

Post by KA5BBC » Sun Aug 02, 2020 11:42 am

Can someone please provide a tutorial on how to build the code lists for remotes.. many of those listed are nigh on impossible to obtain in the US and eBay shipping, thanks to the global distribution center, is extremely slow and unreliable - my last few orders either disappeared or arrived damaged.
Andy, KA5BBC/MM0BQV

G8GKQ
Site Admin
Posts: 1746
Joined: Sun Mar 22, 2009 1:21 pm

Re: IR Remote Controls for the Ryde Receiver

Post by G8GKQ » Sun Aug 02, 2020 3:46 pm

Hi Andy

For now, the easiest thing is to select an existing remote file with the same protocol and edit it. Basic instructions here - will be updated in the next day or 2. https://wiki.batc.org.uk/Ryde_remote_co ... te_control

Dave

DL5BCA
Posts: 64
Joined: Tue Jun 30, 2020 11:59 am

Re: IR Remote Controls for the Ryde Receiver

Post by DL5BCA » Wed Aug 26, 2020 7:23 pm

Hello,

I trained an older AEG DVD remote control.
Here are the codes:

---
name: AEG DVD
driver: nec
buttons:
POWER: 0x0c
UP: 0x47
DOWN: 0x02
LEFT: 0x15
RIGHT: 0x16
SELECT: 0x40
BACK: 0x55
MENU: 0x04
MUTE: 0x49
VOL+: 0x0d
VOL-: 0x1d
CHAN+: 0x08
CHAN-: 0x18
ZERO: 0x0a
ONE: 0x4c
TWO: 0x0e
THREE: 0x4d
FOUR: 0x0f
FIVE: 0x4f
SIX: 0x4e
SEVEN: 0x0b
EIGHT: 0x4b
NINE: 0x4a

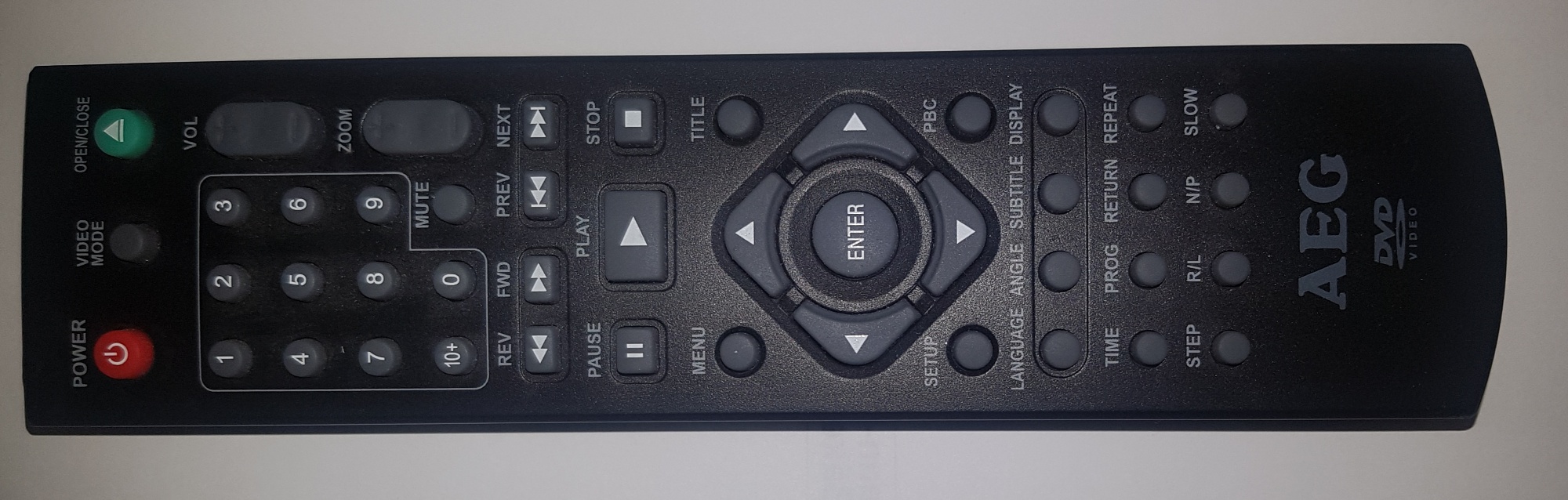

Attachments
73 Thomas
DL5BCA
