Minitiouner V1.0 3D Case ?
Posted: Fri Feb 16, 2018 11:59 am
by on7ma
Hello
Minitiouner V1.0
did someone allready designed and printed a 3D Case for this tuner
If there exist ?
I searched on thingiverse, but found nothing
Could be helpfull
Tnx for any help ?
Otherwise , I have to give a go myself ..
ON7MA, Jemp
Re: Minitiouner V1.0 3D Case ?
Posted: Fri Feb 16, 2018 12:41 pm
by g0mjw
I just used a standard Hammond extruded metal case for my V1. Much stronger. Looks good. Heatsinking.
www.hammfg.com/electronics/small-case/extruded/1455
Mike
Re: Minitiouner V1.0 3D Case ?
Posted: Fri Feb 16, 2018 12:47 pm
by on7ma
Ok Mike tnx 4 answer
Can you show a pic ? of the construction ?
The FDDI Module on feet is getting quite high...
Re: Minitiouner V1.0 3D Case ?
Posted: Fri Feb 16, 2018 12:57 pm
by g0mjw
I don't have an internal photo and it doesn't exist any more. Sorry.
Mike

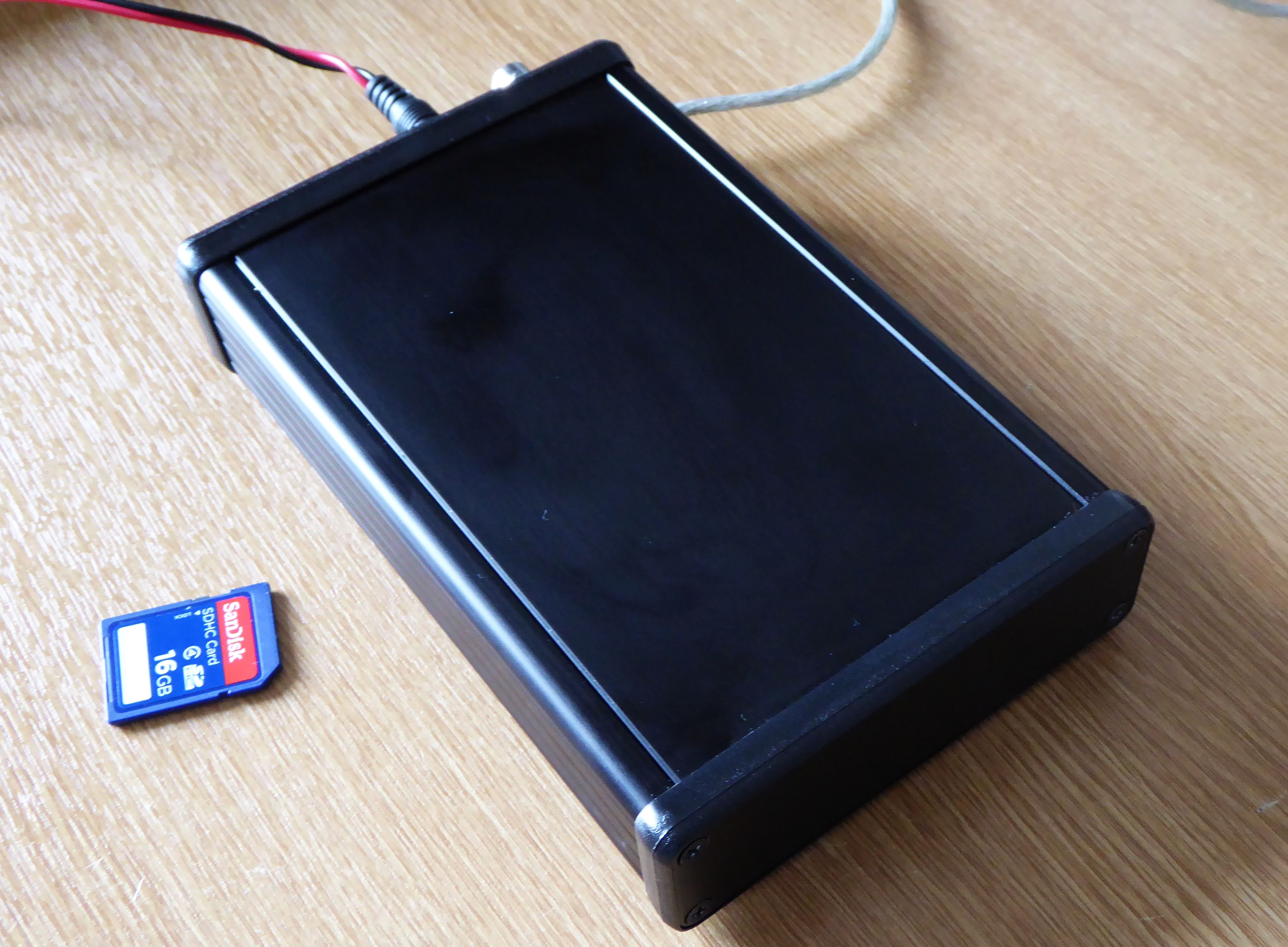

- USB DATV Tuner In box.jpg (1.04 MiB) Viewed 7223 times
Re: Minitiouner V1.0 3D Case ?
Posted: Sat Feb 17, 2018 11:19 am
by on7ma
Merci JP,
I have version 1.0, this case best for other version.
I will try to design myself and put the the design here on the forum, for other people
JP
Re: Minitiouner V1.0 3D Case ?
Posted: Sat Feb 17, 2018 11:31 am
by g0mjw
The other version won't fit in this case. It was for my V1 too. I used a 90 degree F-type and 90 degree USB extender to bring the sockets out of the back. I used the case itself to dissipate the heat from the regulators.
Mike
Re: Minitiouner V1.0 3D Case ?
Posted: Sat Feb 17, 2018 11:54 am
by ON1AVO
JP,
Some pictures of my Minitioune v01.
The attachment 20180217_124441 (Small).jpg is no longer available
The attachment 20180217_124453 (Small).jpg is no longer available

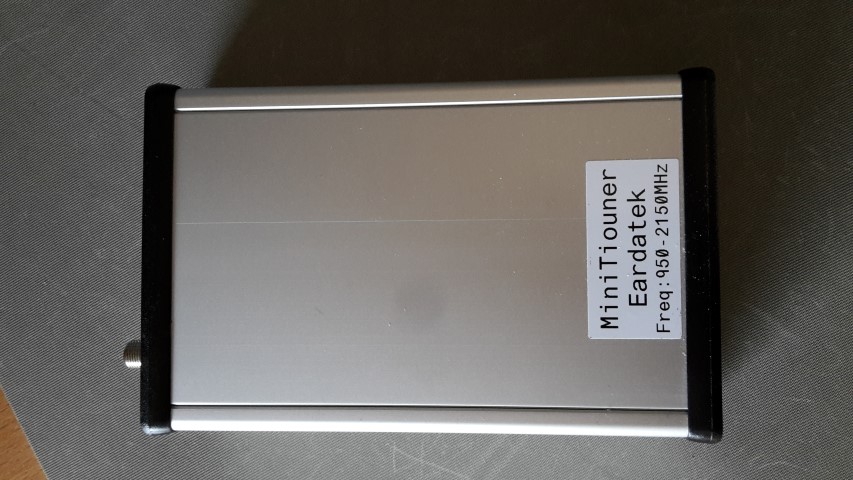

- 20180217_124441 (Small).jpg (116.18 KiB) Viewed 7107 times
Re: Minitiouner V1.0 3D Case ?
Posted: Sat Feb 17, 2018 11:57 am
by ON1AVO
Oeps, some photo's lost.

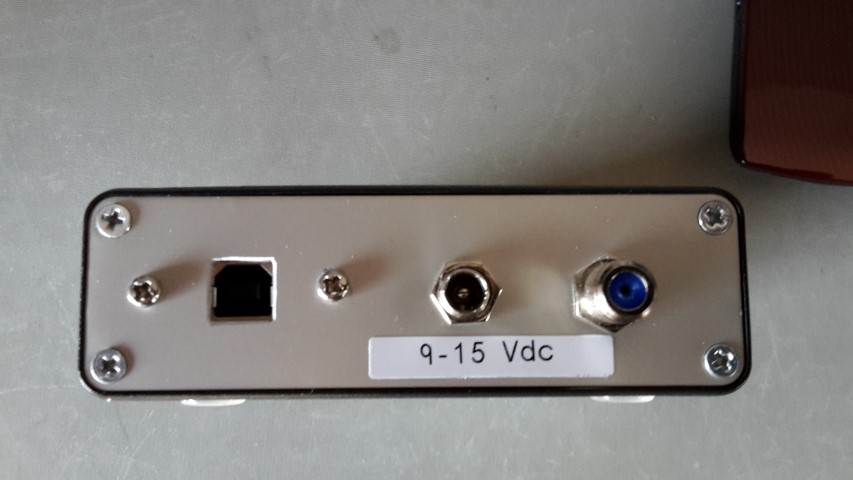

- 20180217_124453 (Small).jpg (86.88 KiB) Viewed 7107 times
The attachment 20180217_124453 (Small).jpg is no longer available
Re: Minitiouner V1.0 3D Case ?
Posted: Sat Feb 17, 2018 11:58 am
by ON1AVO

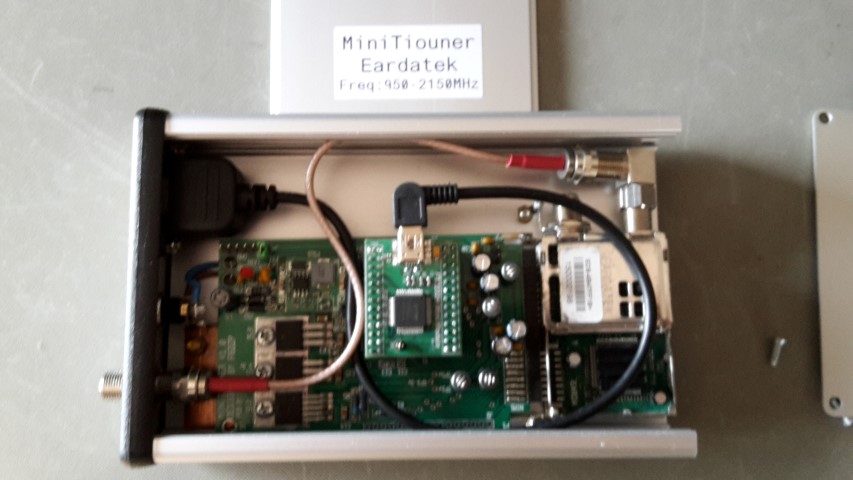

- 20180217_124556 (Small).jpg (104.03 KiB) Viewed 7107 times
Re: Minitiouner V1.0 3D Case ?
Posted: Sat Feb 17, 2018 12:01 pm
by g0mjw
That's incredibly similar to what I did!
