Minitiouner V1.0 3D Case ?

Post by on7ma » Fri Feb 16, 2018 11:59 am

Hello
Minitiouner V1.0

did someone allready designed and printed a 3D Case for this tuner
If there exist ?
I searched on thingiverse, but found nothing
Could be helpfull
Tnx for any help ?

Otherwise , I have to give a go myself ..

ON7MA, Jemp

g0mjw
Posts: 597
Joined: Sat Sep 20, 2014 9:15 am

Re: Minitiouner V1.0 3D Case ?

Post by g0mjw » Fri Feb 16, 2018 12:41 pm

I just used a standard Hammond extruded metal case for my V1. Much stronger. Looks good. Heatsinking. www.hammfg.com/electronics/small-case/extruded/1455

Mike

on7ma
Posts: 20
Joined: Thu Aug 07, 2014 10:53 am

Re: Minitiouner V1.0 3D Case ?

Post by on7ma » Fri Feb 16, 2018 12:47 pm

Ok Mike tnx 4 answer
Can you show a pic ? of the construction ?
The FDDI Module on feet is getting quite high...

g0mjw
Posts: 597
Joined: Sat Sep 20, 2014 9:15 am

Re: Minitiouner V1.0 3D Case ?

Post by g0mjw » Fri Feb 16, 2018 12:57 pm

I don't have an internal photo and it doesn't exist any more. Sorry.

Mike

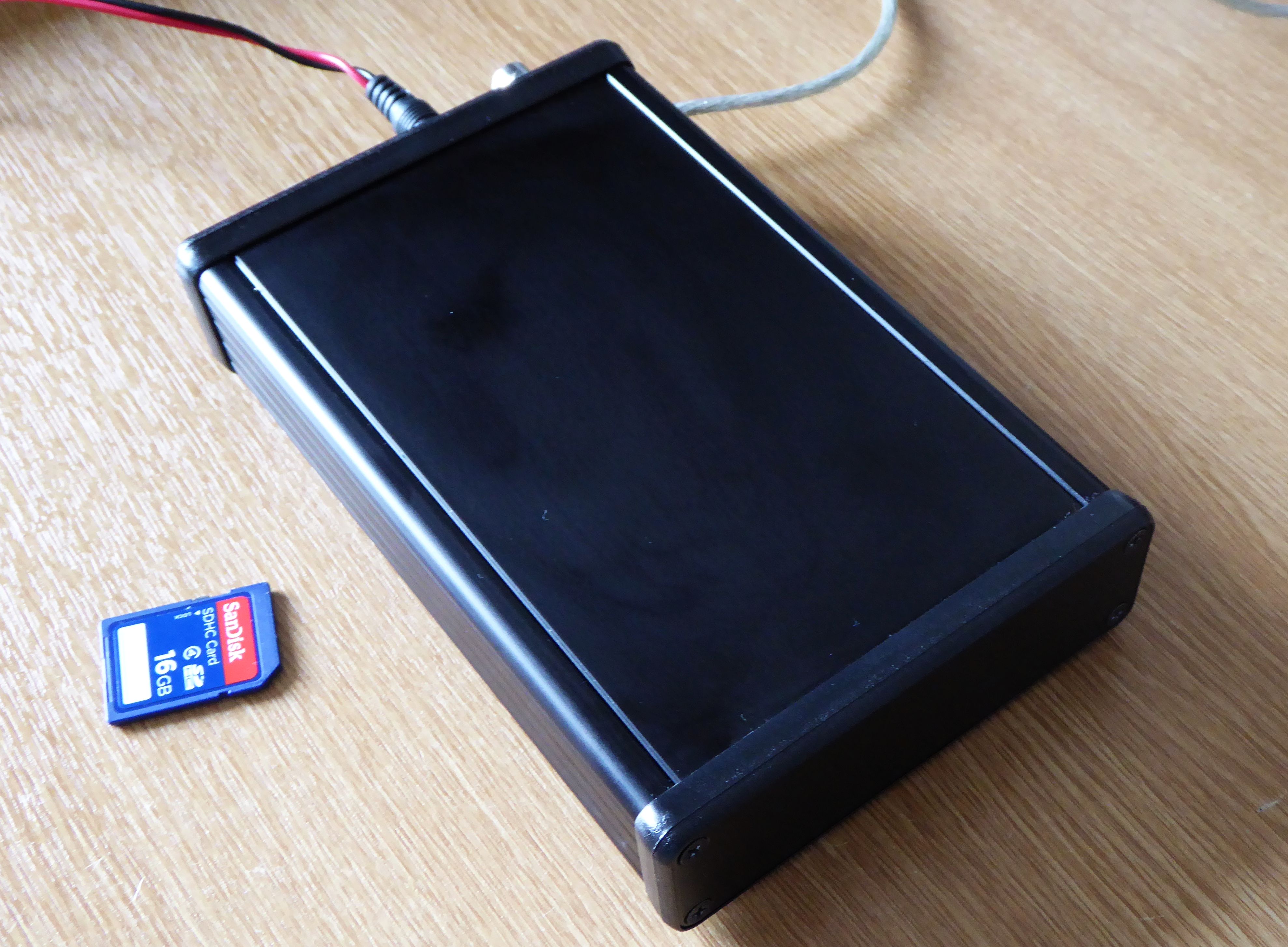

USB DATV Tuner In box.jpg
USB DATV Tuner In box.jpg (1.04 MiB) Viewed 1001 times

on7ma
Posts: 20
Joined: Thu Aug 07, 2014 10:53 am

Re: Minitiouner V1.0 3D Case ?

Post by on7ma » Sat Feb 17, 2018 11:19 am

Merci JP,
I have version 1.0, this case best for other version.
I will try to design myself and put the the design here on the forum, for other people
JP

g0mjw
Posts: 597
Joined: Sat Sep 20, 2014 9:15 am

Re: Minitiouner V1.0 3D Case ?

Post by g0mjw » Sat Feb 17, 2018 11:31 am

The other version won't fit in this case. It was for my V1 too. I used a 90 degree F-type and 90 degree USB extender to bring the sockets out of the back. I used the case itself to dissipate the heat from the regulators.

Mike

ON1AVO
Posts: 19
Joined: Sun Nov 20, 2011 2:35 pm

Re: Minitiouner V1.0 3D Case ?

Post by ON1AVO » Sat Feb 17, 2018 11:54 am

JP,

Some pictures of my Minitioune v01.
The attachment 20180217_124441 (Small).jpg is no longer available
The attachment 20180217_124453 (Small).jpg is no longer available

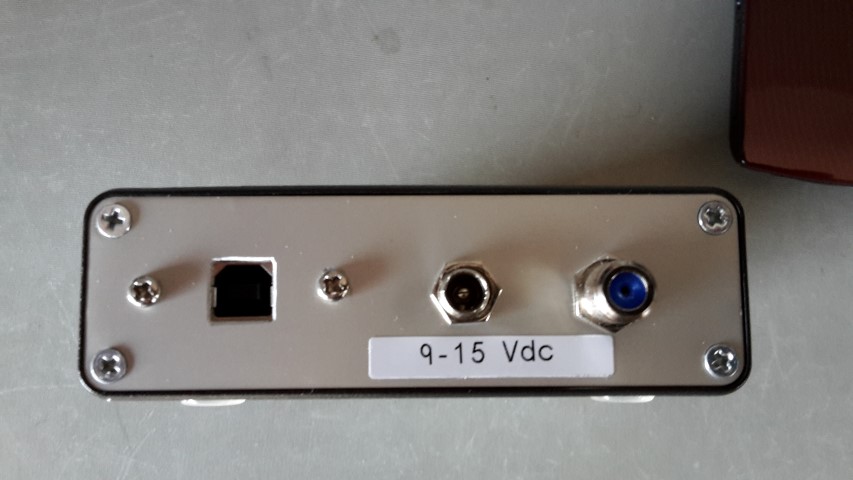

20180217_124441 (Small).jpg
20180217_124441 (Small).jpg (116.18 KiB) Viewed 885 times

ON1AVO
Posts: 19
Joined: Sun Nov 20, 2011 2:35 pm

Re: Minitiouner V1.0 3D Case ?

Post by ON1AVO » Sat Feb 17, 2018 11:57 am

Oeps, some photo's lost.

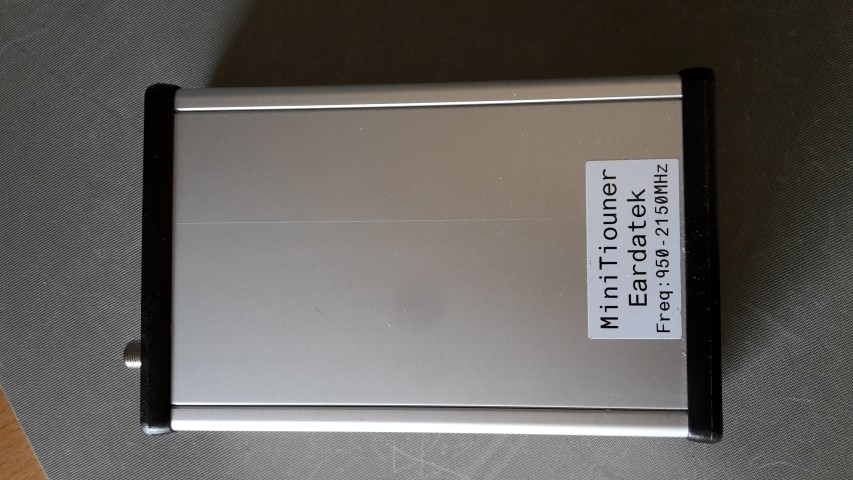

20180217_124453 (Small).jpg
20180217_124453 (Small).jpg (86.88 KiB) Viewed 885 times
The attachment 20180217_124453 (Small).jpg is no longer available

ON1AVO
Posts: 19
Joined: Sun Nov 20, 2011 2:35 pm

Re: Minitiouner V1.0 3D Case ?

Post by ON1AVO » Sat Feb 17, 2018 11:58 am

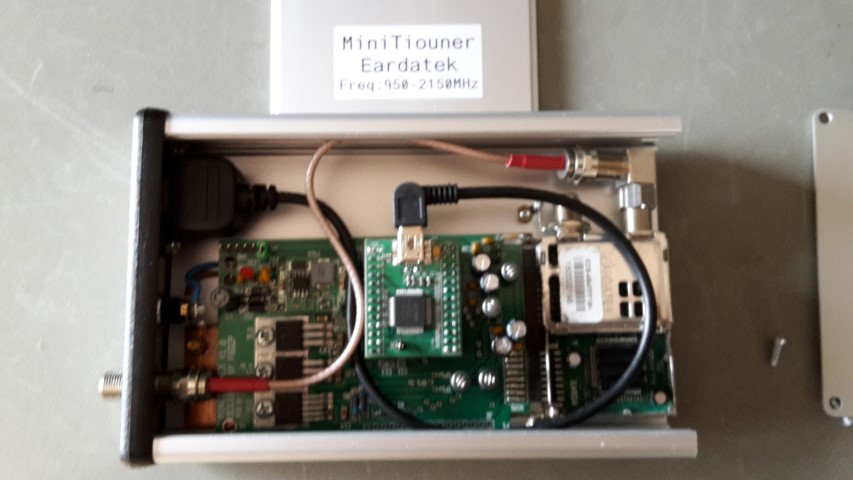

20180217_124556 (Small).jpg
20180217_124556 (Small).jpg (104.03 KiB) Viewed 885 times

g0mjw
Posts: 597
Joined: Sat Sep 20, 2014 9:15 am

Re: Minitiouner V1.0 3D Case ?

Post by g0mjw » Sat Feb 17, 2018 12:01 pm

That's incredibly similar to what I did!
