Solution to Problems in using HDMI Cables for the Pi Camera
Posted: Mon Jul 10, 2017 1:29 pm
by G8GKQ
Hi All
I know that some Portsdown builders have had problems getting HDMI Cables to work with the Tindie adapter cards to extend the reach of the Pi Camera cable. Some cables just give no video. I have put details of a solution on the Wiki here:
https://wiki.batc.org.uk/CSI-2_to_HDMI.
Before these modifications, only 2 of my 8 HDMI cables would work. After Modification 1, a further 4 worked, and Modification 2 cured the problems with the final 2.
Please let me know how you get on.
Dave, G8GKQ
Re: Solution to Problems in using HDMI Cables for the Pi Camera
Posted: Mon Jul 10, 2017 2:39 pm
by KenW6HHC
Hi Dave G8GKQ,
I have included an enhanced JPEG of Modification 1 for the Wiki, I think it makes the solder bridge location more apparent for the viewer?
Mod-1 solder bridge is more apparent with an arrow
Also, what is the normal "symptom" for a "bad cable"?? Perhaps
NO VIDEO??
I was just about to start my HDMI extender-cable mod this week....great timing.
THANKS...de Ken
Re: Solution to Problems in using HDMI Cables for the Pi Camera
Posted: Tue Jul 11, 2017 3:14 pm
by G4KLB

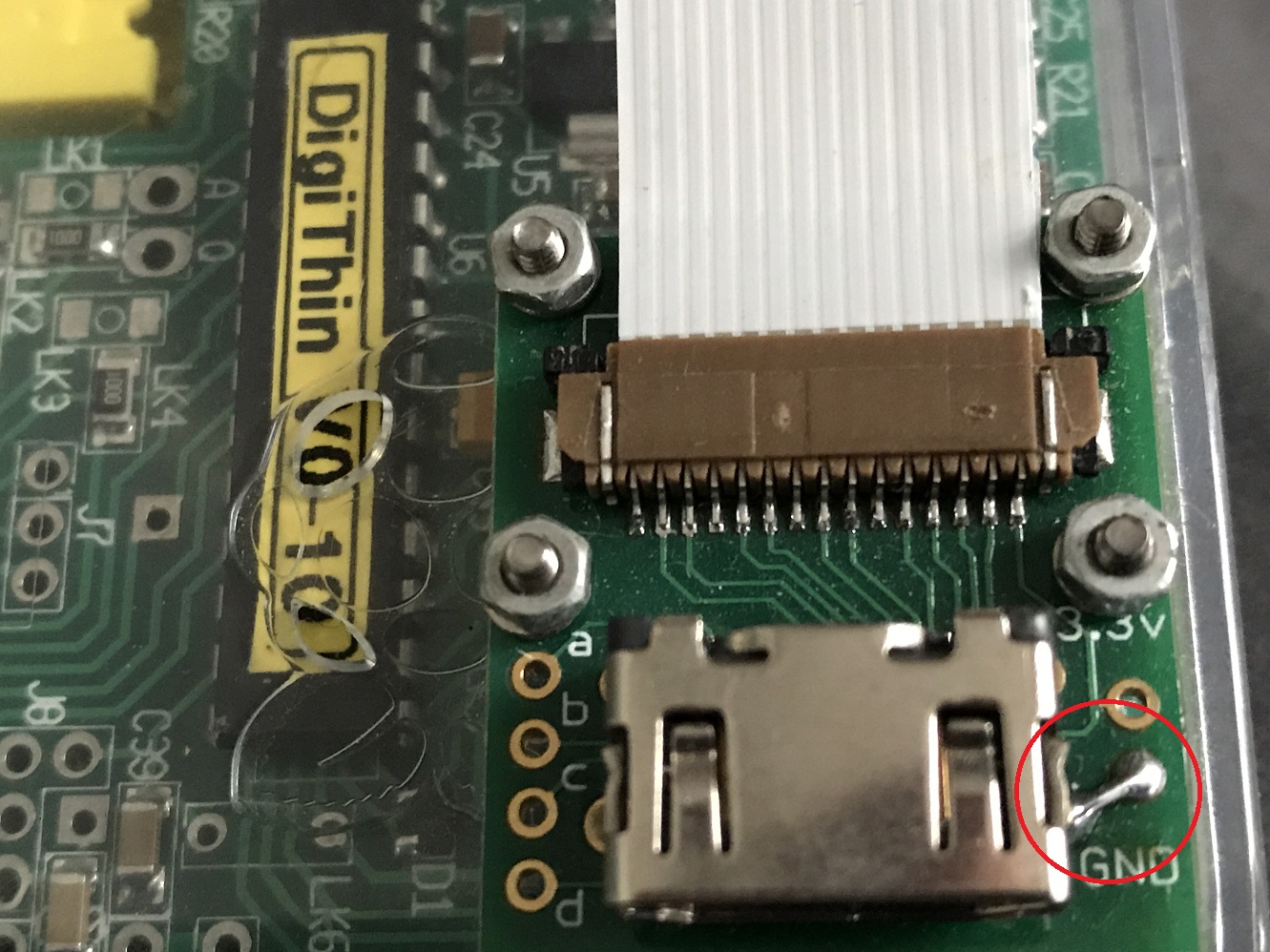

If you have a very early board without the link you need to run a small wire from the body of the HDMI socket to the GND.
I did this mod on all of my DigiThin camera connectors. Remember to do the same at the camera end.
- HDMI link.jpg (390.38 KiB) Viewed 5177 times
Re: Solution to Problems in using HDMI Cables for the Pi Camera
Posted: Sat Feb 08, 2020 12:48 pm
by keng8vdp
If anyone finds or has already found an HDMI cable that works without modifying the 2 adapter pcb's please let us know on here. Links to them online if possible please.
Thanks Ken
Re: Solution to Problems in using HDMI Cables for the Pi Camera
Posted: Sat Feb 08, 2020 4:23 pm
by keng8vdp
keng8vdp wrote: ↑Sat Feb 08, 2020 12:48 pm
If anyone finds or has already found an HDMI cable that works without modifying the 2 adapter pcb's please let us know on here. Links to them online if possible please.
If im on the right track. An ebay search in
title & description using the term "HDMI Cable CEC" should find them.
Thanks Ken
PS. The link to wiki in the top post doesnt work but this one did as of 8th Feb 2020 >>>
https://wiki.batc.org.uk/CSI-2_to_HDMI
Re: Solution to Problems in using HDMI Cables for the Pi Camera
Posted: Sat Feb 08, 2020 5:37 pm
by G8GKQ
Thanks Ken - I've corrected the link now.
Dave
Re: Solution to Problems in using HDMI Cables for the Pi Camera
Posted: Sat Feb 08, 2020 8:00 pm
by M0YDH
Ken
I bought an official Raspberry Pi HDMI cable for my pi camera when I started this caper in 2017. Looking back through the emails it was this one:-
https://uk.farnell.com/raspberry-pi/cpr ... dp/2545204
It worked absolutely fine with the Tandie adapter kit.
I think it was on the official compatibility list at the time.
73
David M0YDH
