RF switch PCB dimensions ?

[G4WIM]

Just putting the finishing touches to my Portsdown tx, but don't currently have a RF output switch to measure fixing centres and install.

Does anyone have a drawing of the PCB showing size, hole centres and diameters etc ?

Having this info would mean I could finish the metal then install the PCB once I can order one from the BATC shop.

Thanks Tim

PS - I've had a look around and only found the schematic and parts list info.

[MN-tech]

The output switch board measures 54mm x 43.18mm.

I have a .PDF file that will print to the correct size if “Actual size’ is selected when you print. It's a bottom view so the holes will be correct if you attach it to the outside of your enclosure.

However I can't attach it here. I have sent a copy to Dave G8GKQ with hopes he will put it on the Wiki.

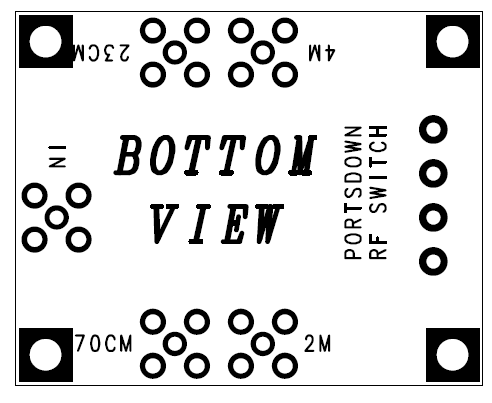

In the meanwhile here is a .PGN version which you will have to scale yourself.

John

[G4WIM]

Hi John,

thanks, as I know the pitch of the connector pins I can now easily determine all the other dimensions !

Getting to quite like the metal work aspect of putting this together

[MN-tech]

I hope you noticed the overall board dimensions are the first line in my previous post.
If your scaling gets those right the rest will fall into place.

[G4WIM]

yep duly noted re overall dimensions - thanks

[G8GKQ]

I've just posted the .pdf on the Wiki here: https://wiki.batc.tv/RF_output_switch

Dave

[M0YDH]

The PCB was an excellent drilling jig. So worth the wait.
David M0YDH
