Main board Build help required

[g6crf]

Hi all, I am in the middle of building the board and have got to the point of installing U03 and U04.
The ICs are shown in the layout as having a notch at the top, however when delivered the chips have no notch, just a sloped edge.
Can anyone tell me which way around these go?

Thanks
Terry
G6CRF/G0CRF/KW4NQ

[g0uhy]

Hi Terry,

take a look at the photo on the wiki. You should be able to tell from the writing on the chips.

https://wiki.batc.tv/File:2-3_Filter-Modulator2.jpg

Hope that helps?

73

Malcolm G0UHY

[M0SKM]

You can download the data sheet here.

http://www.linear.com/docs/3599

Steve

[G4KLB]

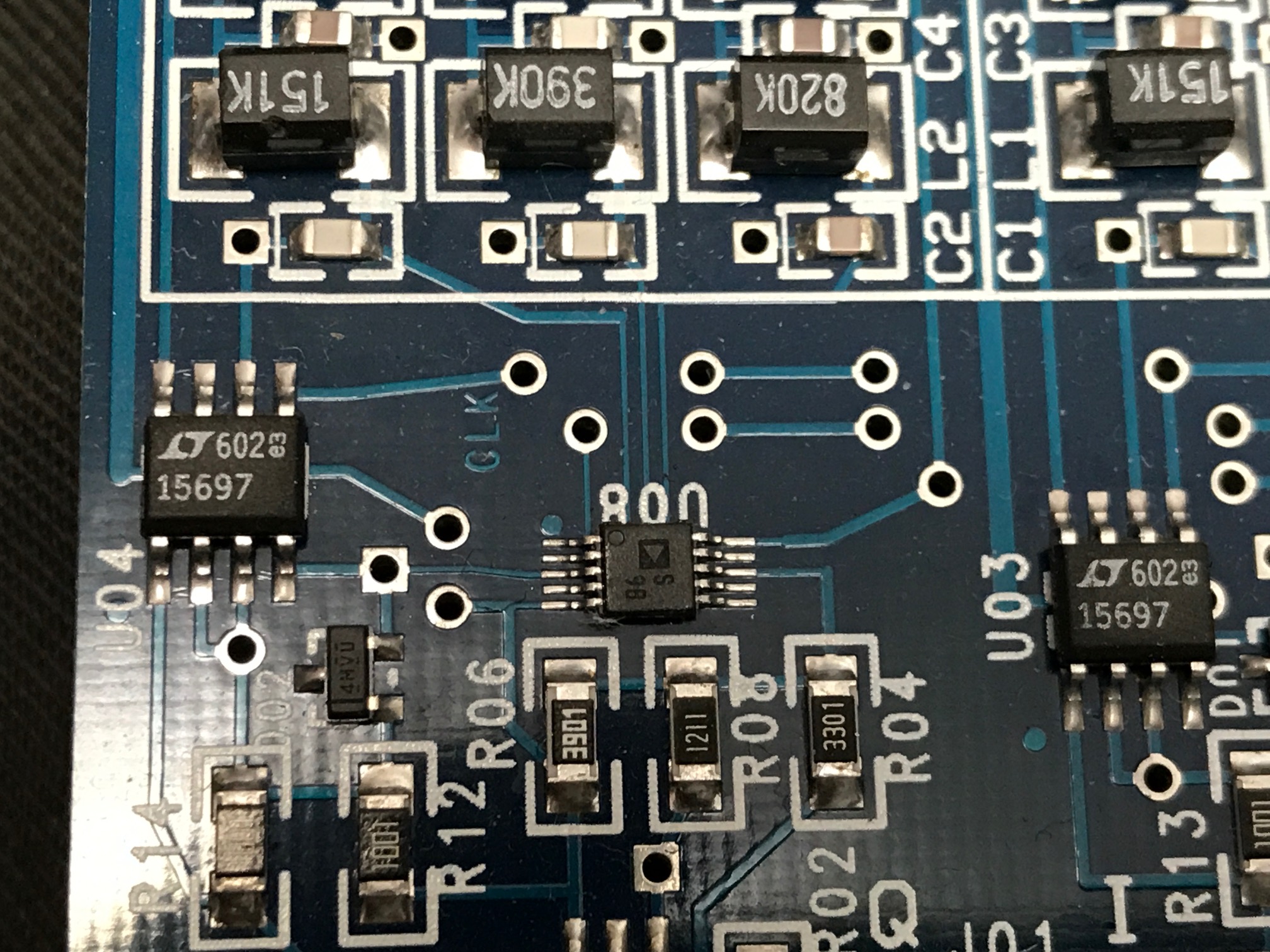

Like this.

U03 U04.JPG (719.94 KiB) Viewed 4832 times

[gm1mfn]

Hi all, I am in the middle of building the board and have got to the point of installing U03 and U04.
The ICs are shown in the layout as having a notch at the top, however when delivered the chips have no notch, just a sloped edge.
Can anyone tell me which way around these go?

Thanks
Terry
G6CRF/G0CRF/KW4NQ

Hold the chip with the sloping edge on your left and pin 1 is at the top-left corner. The sloping edge is on the same side as the impressed dot next to pin 1.

[g6crf]

Thanks for the replies, that's definitely solved it for me.
Looking forward to when I get it finished.
Thanks
Terry
