using only 45 kHz bandwidth!

[F6DZP]

Hello,

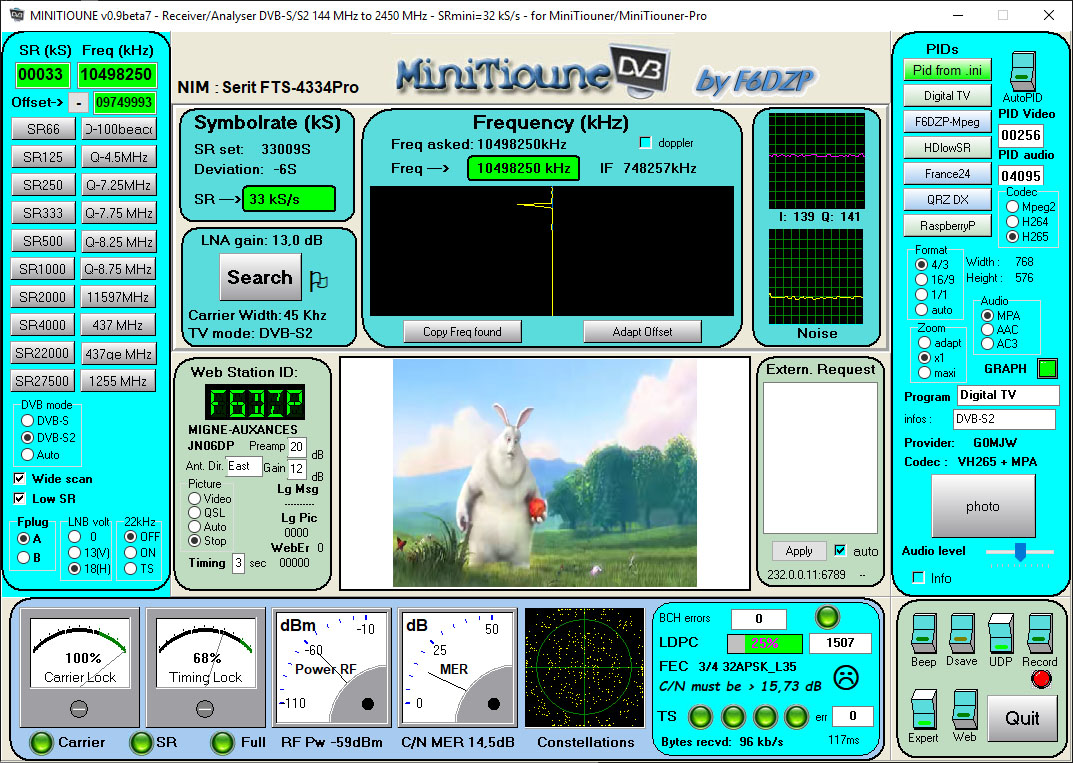

This morning we have tested the new (beta) version of Minitioune and have been able to receive a beautiful video from G0MJW using only 45 kHz of bandwidth!

SR used 33kS/s
modulation : 32APSK
encoding : H265

video definition : 768x576 (moving picture - Bunny)


We are very far from analog video bandwidth and the result is very acceptable!

73
Jean-Pierre F6DZP
